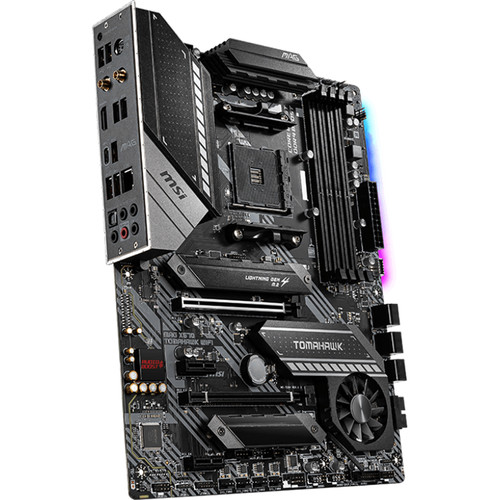

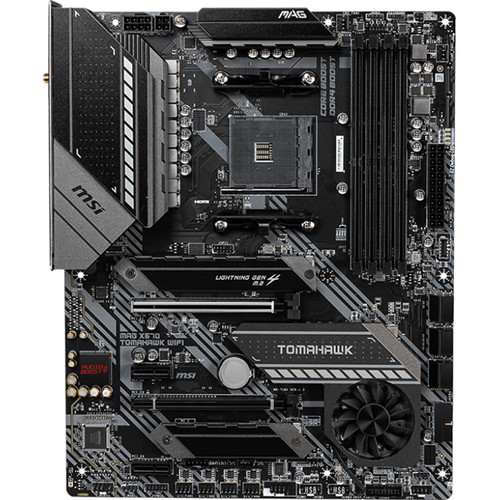

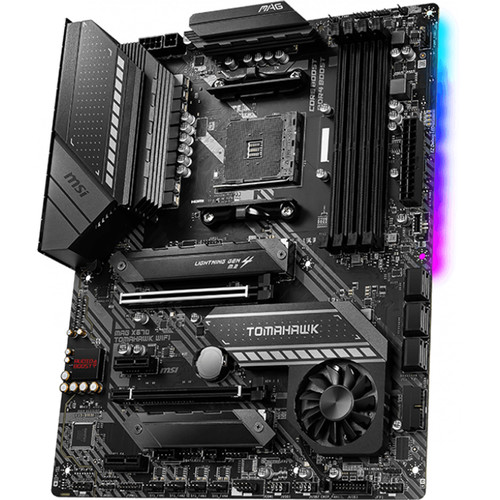

MSI MAG X570 Tomahawk WIFI ATX Motherboard – AM4 Socket, PCIe 4.0, Wi-Fi 6
$180.59
MSI MAG X570 Tomahawk WIFI ATX Motherboard for AMD Ryzen processors. PCIe 4.0, Wi-Fi 6, USB 3.2 Gen 2, high-quality audio, and extensive cooling.
In stock
Description
Elevate Your Computing Experience with MSI MAG X570 Tomahawk WIFI
Designed for gamers, content creators, and enthusiasts, the MSI MAG X570 Tomahawk WIFI AM4 ATX Motherboard is engineered to unlock the full potential of your high-performance computer build. Powered by the AMD X570 chipset, this motherboard supports 2nd and 3rd generation AMD Ryzen processors, leveraging the AM4 socket for seamless compatibility and high performance.
Unmatched Performance and Expandability
- Supports PCIe 4.0 for high-bandwidth data transfer, ideal for 3D rendering and video editing.
- Dual-channel DDR4 RAM support up to 128GB and 4600 MHz (OC), ensuring smooth multitasking and high-speed data processing.
- Advanced cooling solutions to maintain optimal performance under heavy loads.
- Accommodates up to three M.2 SSDs and six SATA III storage drives, configurable in RAID 0, 1, or 10 for enhanced storage flexibility and performance.
- Two PCIe 4.0 x16 slots for 2-Way AMD CrossFireX configuration, maximizing graphical capabilities for high frame rates and 4K connectivity.
- Additional PCIe 3.0 x1 slots for expansion cards, offering further customization options.
High-Speed Connectivity and Immersive Audio
The MSI MAG X570 Tomahawk WIFI motherboard is equipped with cutting-edge connectivity options, including USB 3.2 Gen 2 Type-A and Type-C ports for data transfer speeds up to 10 Gb/s, 2.5 Gigabit Ethernet, and built-in 802.11ax Wi-Fi for wireless speeds up to 2.4 Gb/s. For an immersive audio experience, it features the Realtek ALC1200 audio codec, delivering deep and immersive 5.1-channel surround sound.
Personalize Your Build with RGB Lighting
Customize your computing experience with the onboard RGB headers, allowing you to connect and synchronize RGB light strips with other MSI Mystic Light-compatible peripherals, such as gaming mice and keyboards, creating a cohesive and personalized lighting ecosystem.
Upgrade your system with the MSI MAG X570 Tomahawk WIFI AM4 ATX Motherboard, combining performance, expandability, and immersive features to meet the demands of today’s computing needs.
Additional information
| Weight | 4.23 lbs |
|---|---|
| Dimensions | 13.5 × 10.7 × 3.4 in |
| Chipset | AMD X570 |
| Multi-GPU Support | 2-Way AMD CrossFireX |
| Supported Operating Systems | Windows 10 |
| Module Support | 1 E Key M.2 |
| Wi-Fi | Wi-Fi 6 (802.11ax) (MU-MIMO) |
| Bluetooth | 5.1 |
| Audio Codec | Realtek ALC1200 (7.1-Channel) |
| I/O Connection Headers | AAFP, USB 3.1 / USB 3.2 Gen 1, USB 3.1 / USB 3.2 Gen 2 |
| ROM | 256 Mb |
| Legacy | 1 x Serial |
| Diagnostics | 2-Digit Debug LED, Clear CMOS |
| LED Header | 4 x RGB |
| Security | Chassis Intrusion, TPM Module |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin ATX<br />1 x 4-Pin ATX |
| Liquid Cooling | 1 x 4-Pin Pump |
| Air Cooling | 1 x 4-Pin CPU<br />4 x 4-Pin System |
| Expansion Slots | 1 x PCIe 4.0 x16 (x16 mode)<br />1 x PCIe 4.0 x16 (x4 mode)<br />2 x PCIe 3.0 x1 |
| CPU Socket | AM4 |
| Memory Slots | 4 x 288-Pin |
| USB | 1 x USB 3.1 / USB 3.2 Gen 2 Header (Supports 1 USB Type-C Port)<br />2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port)<br />2 x USB 2.0 Header (Supports 4 USB Type-A Port) |
| Thunderbolt | None |
| Display | 1 x HDMI 1.4Output |
| Ethernet / Controller | 1 x Realtek 8125B 2.5Gigabit |
| Wi-Fi Antenna | 2 x Connector |
| Buttons | BIOS Flashback |
| Memory Support | DDR4 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4533, 4600 MHz |
| RAID Support | RAID 0, 1, 10 |
| Maximum Capacity | 128 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC, ECC (Non-ECC Mode) Unbuffered |
| SATA | 6 x SATA III |
| M.2 | 2 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 3.0 x4)<br />1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, PCIe 3.0 x4, SATA III) |
| U.2 | None |
| Form Factor | ATX |
