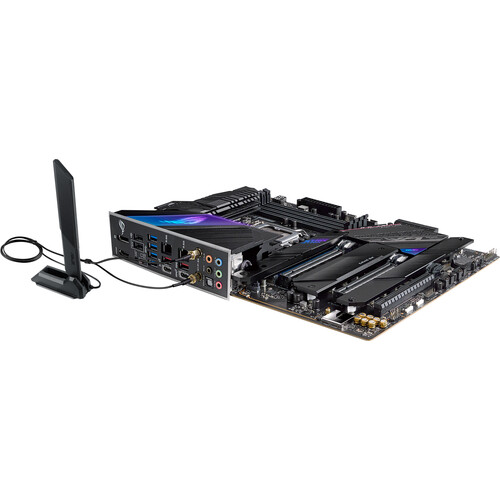

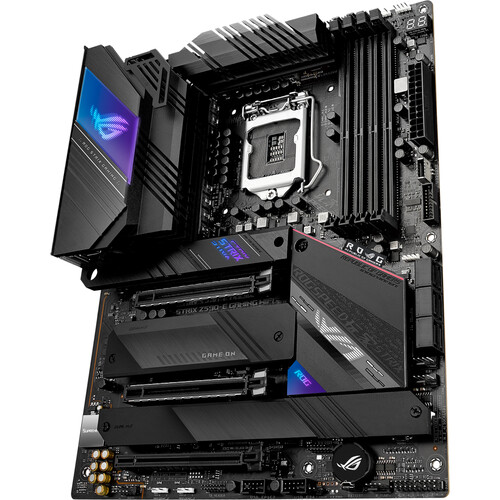

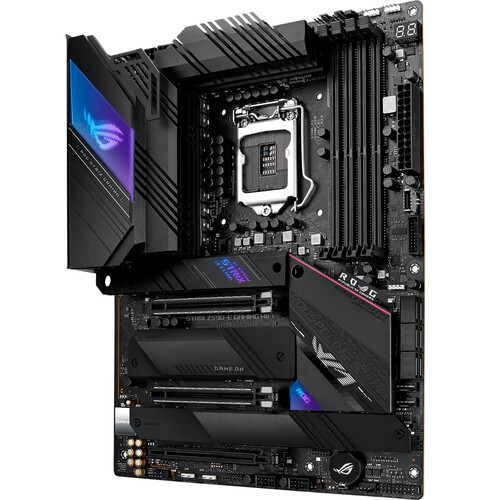

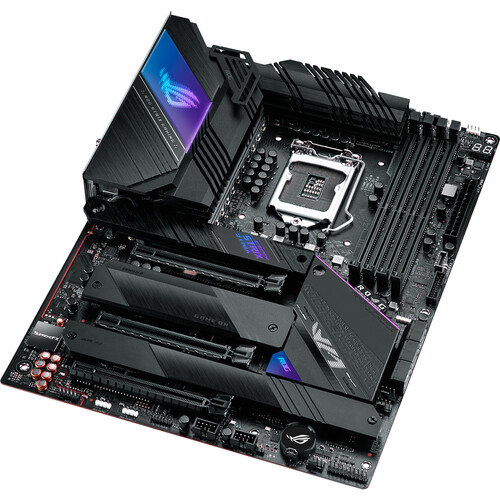

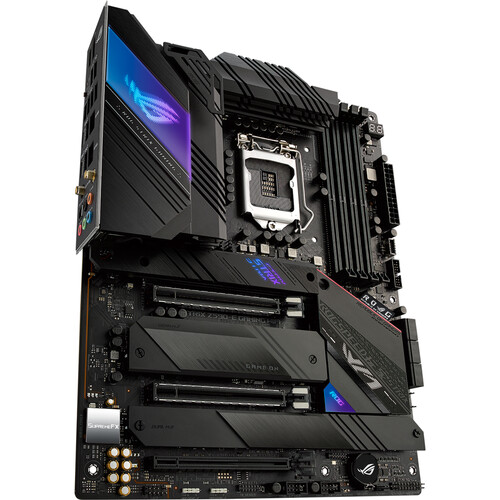

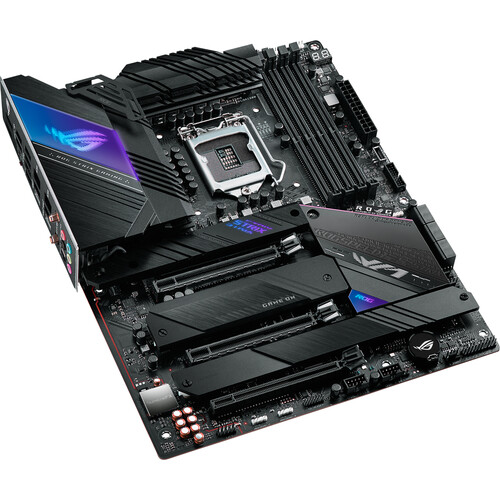

ASUS ROG STRIX Z590-E GAMING WIFI Motherboard – High-Performance ATX Intel Z590 Chipset Gaming Motherboard
$246.99
Unleash the full power of your 11th Gen Intel Core system with the ROG STRIX Z590-E GAMING WIFI motherboard, featuring Wi-Fi 6E, USB 3.2 Gen 2×2, and Aura Sync RGB.
In stock
Description
Unleash the full power of your 11th Gen Intel Core system with the ROG STRIX Z590-E GAMING WIFI LGA 1200 ATX Motherboard from ASUS. This high-performance motherboard features the Intel Z590 chipset, supporting 11th and 10th Gen Intel processors for gaming and content creation. With PCIe 4.0, it maximizes speeds with compatible devices and supports up to 128GB of DDR4 memory at 5333 MHz. The motherboard includes multiple storage options, with slots for up to six SATA III drives and four M.2 PCIe SSDs in RAID configurations, and is compatible with Intel Optane technology. For graphics, it features three expansion slots, accommodating NVIDIA SLI graphics cards for maximized graphics capabilities.
Connect your peripherals and devices with the variety of USB ports, including USB 3.2 Gen 2×2 Type-C for 20 Gb/s transfers, and enjoy immersive 7.1-channel audio with SupremeFX and DTS Sound Unbound technology. Customize your setup with RGB lighting headers for Aura Sync compatible devices. Dual 2.5G Ethernet and Wi-Fi 6E provide super low-latency gaming and smooth 4K streaming, with Windows 10 64-bit required for full feature utilization.
Additional information
| Weight | 5.25 lbs |
|---|---|
| Dimensions | 13.6 × 10.7 × 3.1 in |
| Chipset | Intel Z590 |
| Add-On | 1 x Thunderbolt Card Header |
| Air Cooling | 2 x 4-Pin CPU<br />3 x 4-Pin System<br />1 x 4-Pin Assistant<br />1 x Thermal Sensor |
| Liquid Cooling | 2 x 4-Pin Pump |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin ATX<br />1 x 4-Pin ATX |
| Security | Chassis Intrusion, TPM Module |
| LED Header | 4 x RGB |
| Diagnostics | 2-Digit Debug LED, CPU Overclock |
| ROM | 256 Mb |
| Expansion Slots | 2 x PCIe 4.0 x16 (x16 mode)<br />1 x PCIe 3.0 x16 (x4 mode) |
| I/O Connection Headers | AAFP, USB 3.1 / USB 3.2 Gen 1, USB 3.2 Gen 2×2 |
| Audio Codec | SupremeFX ALC4080 (7.1-Channel) |
| DAC | Savitech SV3H712 |
| Bluetooth | 5.2 |
| Wi-Fi | Wi-Fi 6E (802.11ax) (MU-MIMO) |
| Supported Operating Systems | Windows 10 (64-Bit) |
| Multi-GPU Support | 2-Way NVIDIA SLI |
| RAID Support | RAID 0, 1, 5, 10 |
| CPU Socket | LGA 1200 |
| Memory Slots | 4 x 288-Pin |
| USB | 1 x USB 3.2 Gen 2×2 Header (Supports 1 USB Type-C Port)<br />1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)<br />2 x USB 2.0 Header (Supports 4 USB Type-A Port) |
| Thunderbolt | None |
| Display | 1 x HDMI 2.0<br />1 x DisplayPort 1.4 |
| Ethernet / Controller | 2 x Intel I225-V 2.5Gigabit |
| Wi-Fi Antenna | 2 x Connector |
| Buttons | BIOS Flashback, Clear CMOS |
| Memory Support | DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4500, 4600, 4700, 4800, 5000, 5133, 5333 MHz |
| Optane Memory Support | Yes |
| Maximum Capacity | 128 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC Unbuffered |
| SATA | 6 x SATA III |
| M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4)<br />1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 3.0 x4)<br />1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4)<br />1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III) |
| U.2 | None |
| Form Factor | ATX |
