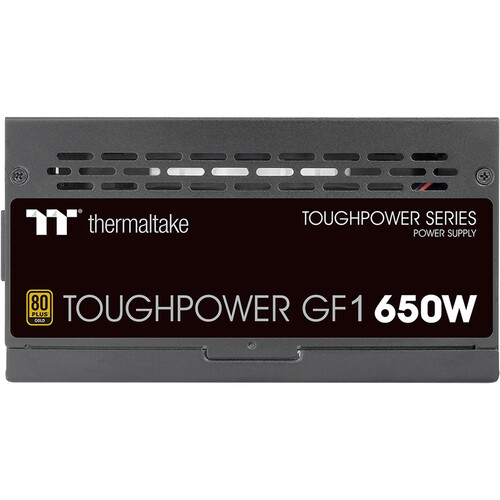

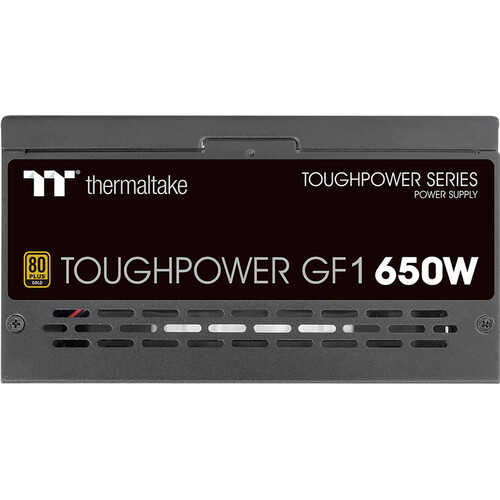

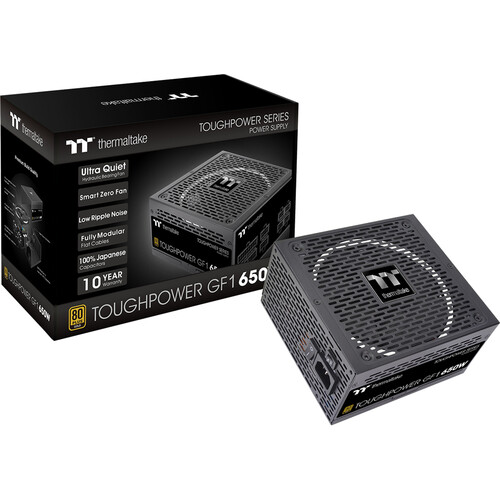

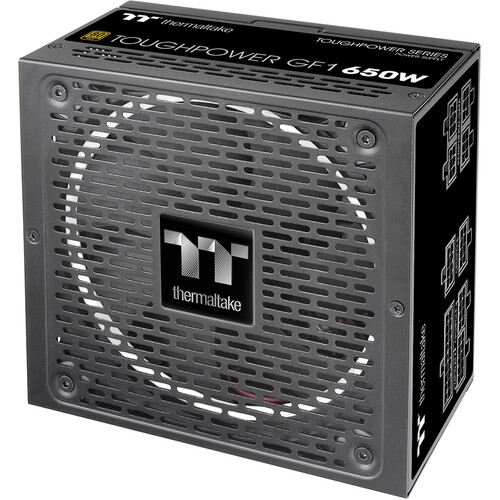

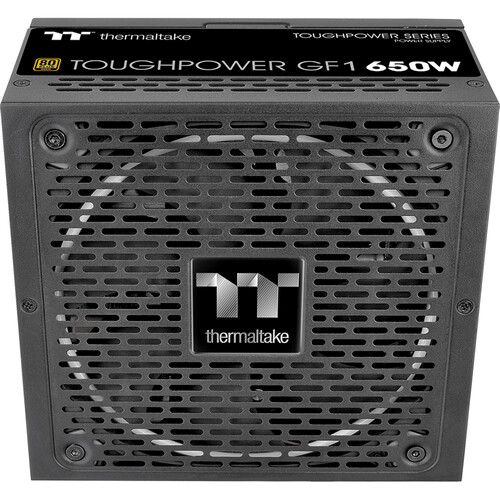

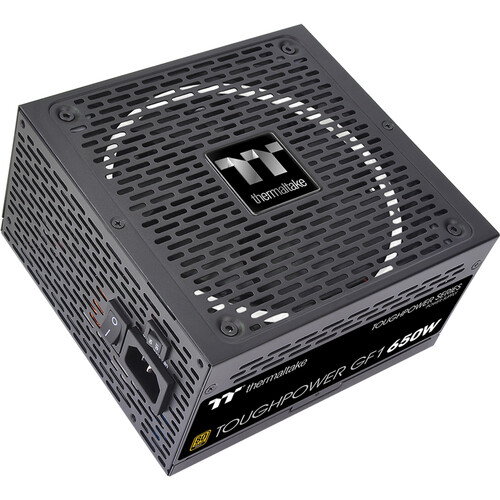

Upgrade Your System with the Thermaltake Toughpower GF1 650W 80 PLUS Gold Modular ATX Power Supply
Experience the perfect blend of power, efficiency, and cable management with the Thermaltake Toughpower GF1 650W 80 PLUS Gold Modular ATX Power Supply. Designed to power your high-performance computer system, this power supply unit (PSU) delivers a robust 650W of power, ensuring your components receive the energy they need to perform at their best.
Key Features:
- 80 PLUS Gold Certification: Achieves up to 90% power efficiency, reducing energy waste and lowering your electricity bill.

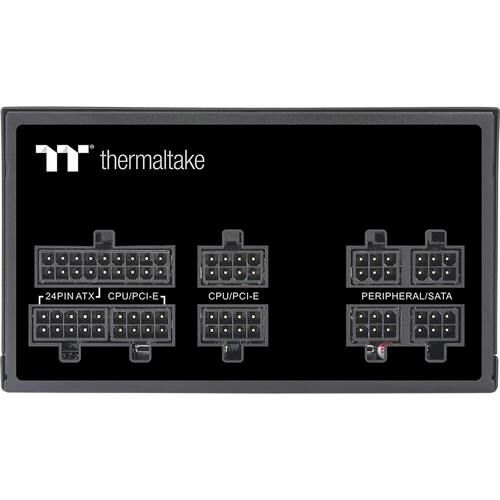

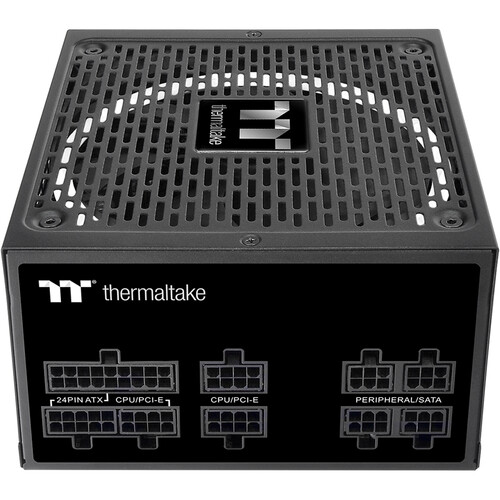

- Modular Cable Design: Customize your cable setup with the modular design, reducing clutter and improving airflow within your case.
- Single +12V Rail: Simplifies power delivery to your components, ensuring stable and reliable performance.

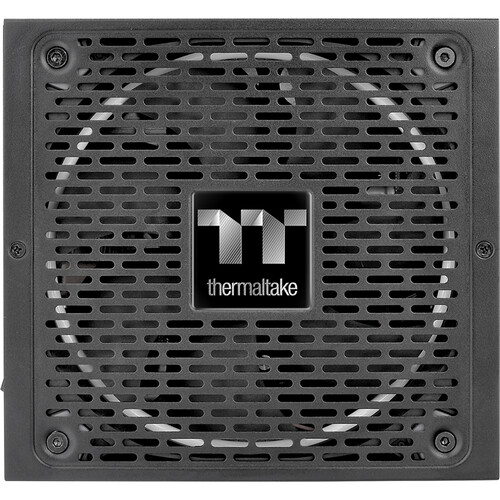

- 140mm Hydraulic Bearing Fan: Provides quiet and efficient cooling, maintaining optimal temperatures under load.
- Comprehensive Connectivity: Includes four PCIe connectors, nine SATA connectors, and four 4-pin peripheral connectors, with a floppy drive adapter for legacy support.
- Long-Lasting Reliability: Estimated lifespan of up to 120,000 hours, backed by Thermaltake’s commitment to quality.
The Thermaltake Toughpower GF1 650W 80 PLUS Gold Modular ATX Power Supply is designed for builders who demand both performance and aesthetics. Its flat, modular cables not only simplify your build but also contribute to a cleaner and more organized system interior. Whether you’re upgrading your current rig or building a new one, this PSU is engineered to meet the needs of high-performance computing while keeping your system cool, quiet, and efficient.
With its blend of high efficiency, modular design, and comprehensive connectivity, the Thermaltake Toughpower GF1 is an excellent choice for anyone looking to power their dream PC.
Additional information
| Weight | 6.48 lbs |
|---|---|
| Dimensions | 12.7 × 9.1 × 6.3 in |
| Total Connectors | 1 x 24-Pin ATX Motherboard<br />1 x 4+4-Pin EPS CPU<br />9 x 15-Pin SATA<br />4 x 6+2-Pin PCIe<br />4 x 4-Pin Peripheral / Molex<br />1 x 4-Pin Floppy |
| Bearing Type | Hydraulic |
| Voltage Protection Range | +3.3 V: 4.5 V<br />+5 V: 7 V<br />+12 V: 14.5 V |
| Efficiency Rating | 80 PLUS Gold |
| Active Power Factor Correction | Yes |
| Hold up Time | 16 ms at 100% Load |
| Power-Good Signal | 100 to 500 ms |
| Fan Size | 140 mm |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Peak Power | 780 W |
| Operating Humidity | 20 to 90% |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Storage Humidity | 5 to 95% |
| Form Factor | ATX |
| Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection |
| Certifications | BSMI, CE, EAC, FCC, TUV, cTUVus, as per Manufacturer |

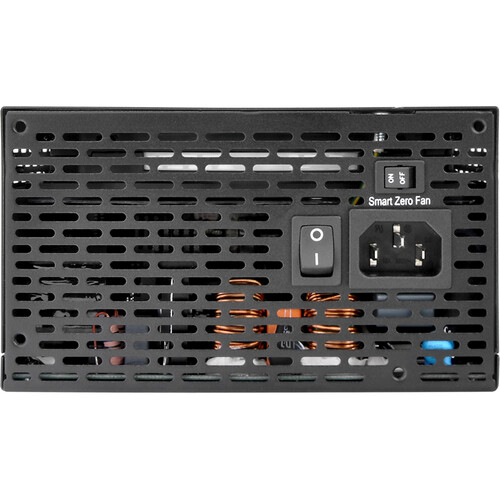

| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 10 A |
| Max Power for -12 V | 3.6 W |
| Cable Design | Flat, Modular |
| Total Wattage | 650 W |
| PCIe Connector Distances | 19.7" / 500 mm<br />5.9" / 150 mm |
| SATA Connector Distances | 19.7" / 500 mm<br />5.9" / 150 mm<br />5.9" / 150 mm |
| Peripheral Connector Distances | 19.7" / 500 mm<br />5.9" / 150 mm<br />5.9" / 150 mm<br />5.9" / 150 mm |
| Floppy Connector Distances | 5.9" / 150 mm (Adapter) |
| ATX Connector Distance | 23.6" / 600 mm |
| EPS Connector Distances | 25.6" / 650 mm |
| Number of +12 V Rails | 1 |

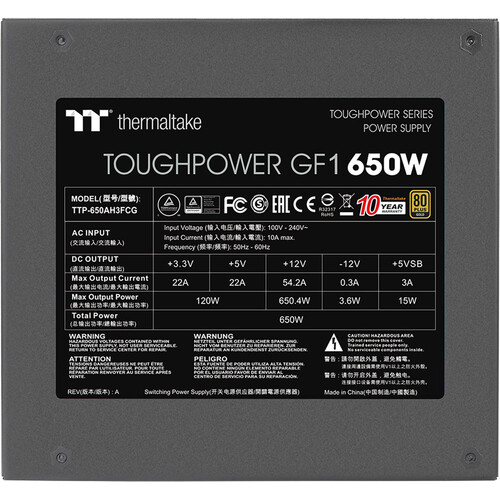

| Max Load for +5 Vsb | 3 A |
| Combined Power for +12 V | 650.4 W |
| Max Load for -12 V | 0.3 A |
| Combined Power for +3.3/+5 V | 120 W |
| Max Load for +3.3 V | 22 A |
| Max Load for +5 V | 22 A |
| Max Power for +5 Vsb | 15 W |
| Mean Time Between Failures (MTBF) | 120, 000 Hours |
