Description
Cooler Master V550 Gold V2: Reliable Power for Your PC

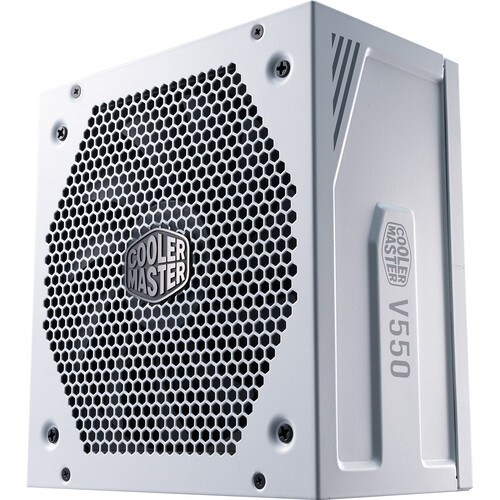

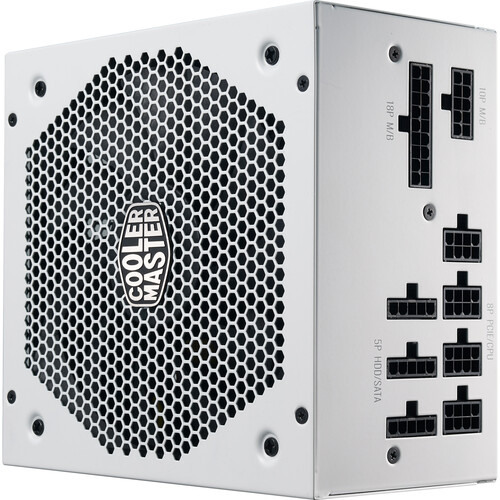

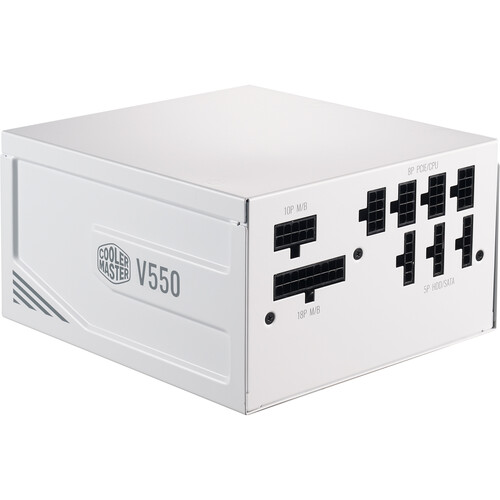

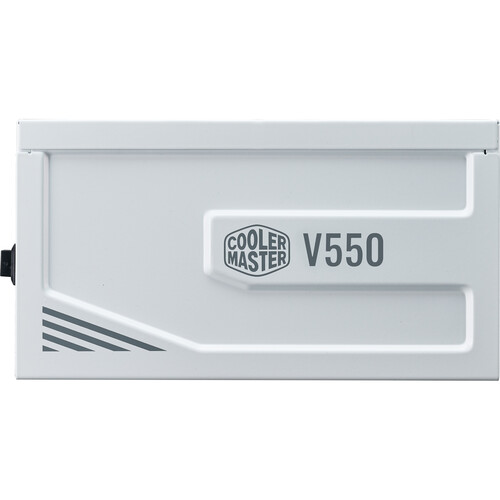

Ensure a steady and reliable flow of power to your computer with the V550 Gold V2 550W 80 PLUS Gold Modular Power Supply from Cooler Master. Designed for computer builders and tech enthusiasts, this white-colored unit delivers up to 550W of power across a single +12V rail.
Key Features
- High Efficiency: 80 PLUS Gold energy efficiency rating of up to 90% under typical loads.

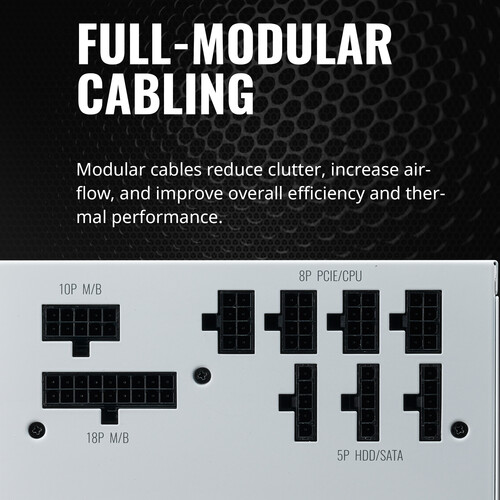

- Modular Design: Only use the cables you need to reduce clutter and improve airflow.
- Comprehensive Connectivity: 24-pin main power, 4+4-pin and 8-pin EPS connectors, 8 x 15-pin SATA, 2 x 6+2-pin PCI-e, 4 x 4-pin peripheral, and 1 FDD connector.

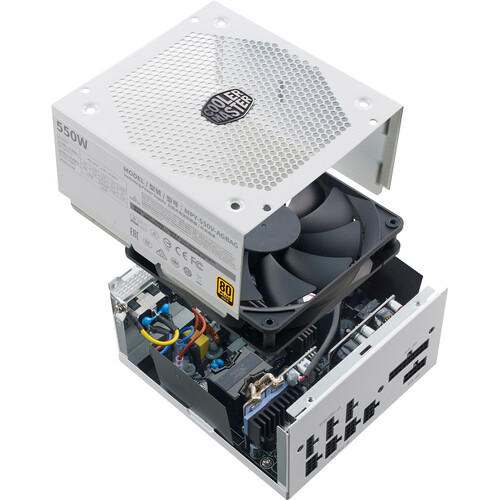

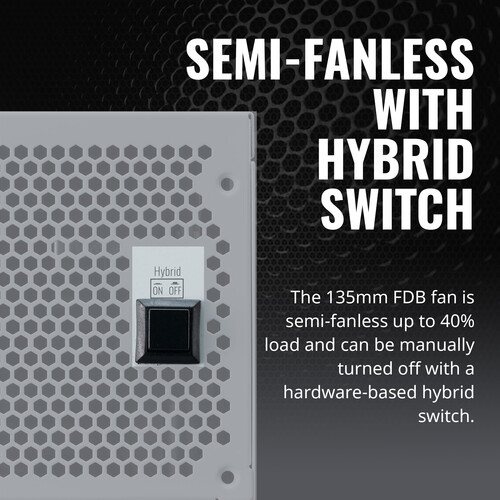

- Silent Operation: 135mm fan with max speed of 1161 rpm that can be configured to shut off under low loads.

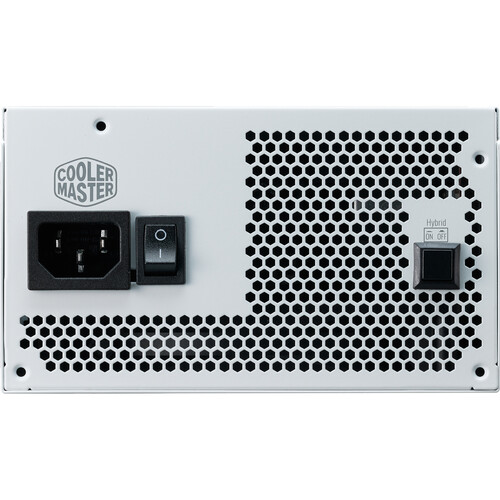

The V550 Gold V2 is designed to provide a reliable and efficient power solution for your computer system. With its modular cables and high-efficiency design, it helps to minimize cable clutter and reduce energy waste. The unit’s 135mm fan is designed for quiet operation and can be manually configured to shut off when loads are below 40%, ensuring silent operation during normal use.
Ideal for computer builders and tech enthusiasts, the Cooler Master V550 Gold V2 550W 80 PLUS Gold Modular Power Supply is a great choice for anyone looking to build or upgrade their PC with a reliable and efficient power supply.
Additional information
| Weight | 6 lbs |
|---|---|
| Dimensions | 12 × 7.9 × 5 in |

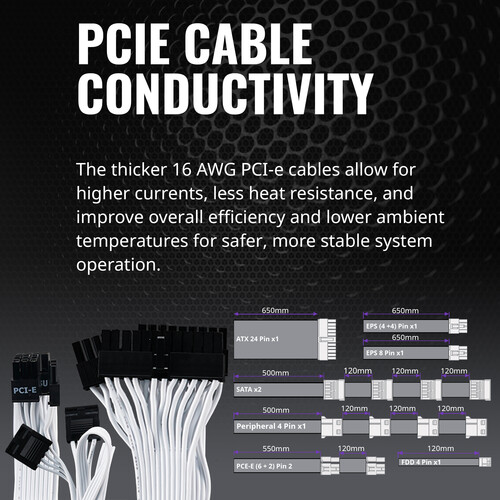

| Total Connectors | 1 x 24-Pin ATX Motherboard<br />1 x 4+4-Pin EPS CPU<br />1 x 8-Pin EPS CPU<br />8 x 15-Pin SATA<br />4 x 4-Pin Peripheral / Molex<br />1 x 4-Pin Floppy<br />2 x 6+2-Pin PCIe |
| Max Power for -12 V | 3.6 W |
| Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection |
| Compliance | ATX 12 V v2.52 |
| Form Factor | ATX |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Noise Level | 0 to 24.9 dBA |

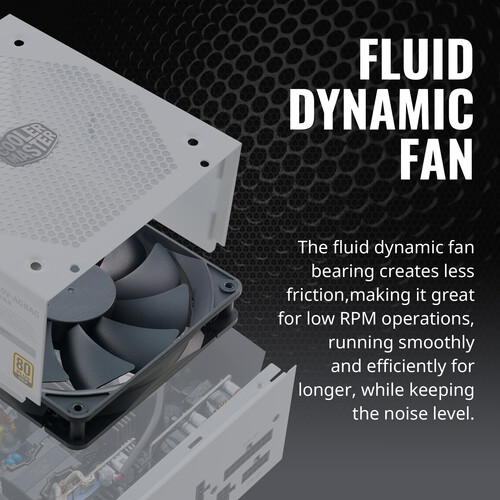

| Bearing Type | Fluid Dynamic Bearings (FDB) |
| Fan Speed | 1161 rpm |

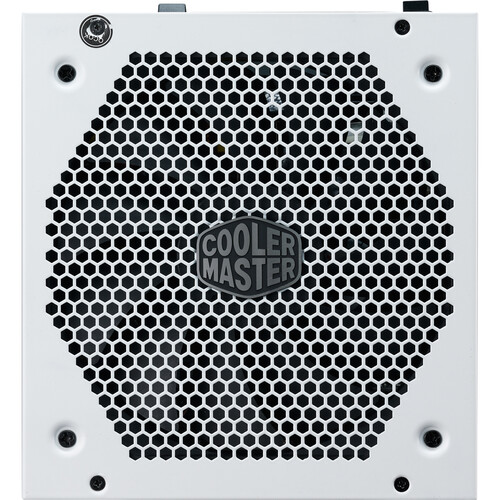

| Fan Size | 135 mm |
| Power-Good Signal | 100 to 500 ms |
| Hold up Time | 17 ms |

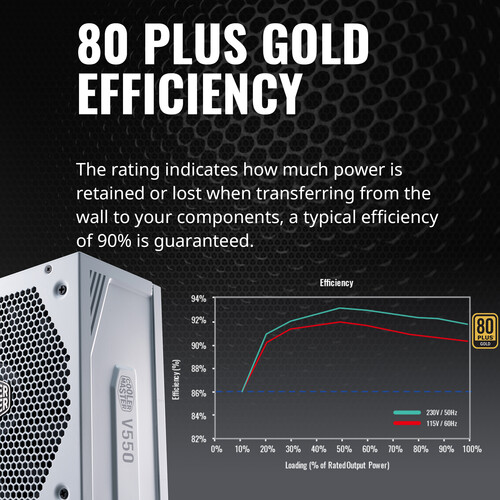

| Efficiency | 90% |
| Active Power Factor Correction | Yes |
| Efficiency Rating | 80 PLUS Gold |

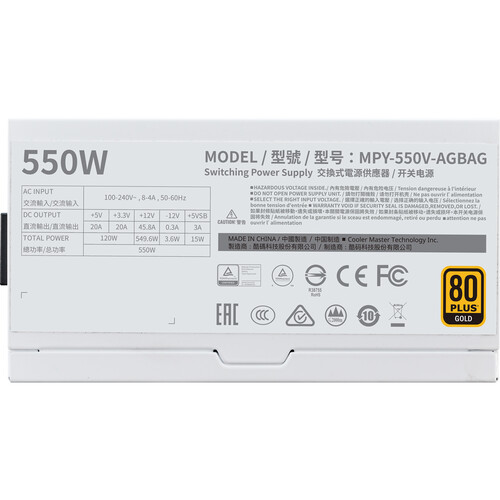

| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 4 to 8 A |
| Max Load for +5 Vsb | 3 A |
| Cable Design | Modular |
| Max Power for +5 Vsb | 15 W |
| Max Load for +5 V | 20 A |
| Max Load for +3.3 V | 20 A |
| Combined Power for +3.3/+5 V | 120 W |
| Max Load for -12 V | 0.3 A |
| Combined Power for +12 V | 549.6 W |
| Number of +12 V Rails | 1 |
| Total Wattage | 550 W |
| EPS Connector Distances | 25.6" / 650 mm |
| ATX Connector Distance | 25.6" / 650 mm |
| Floppy Connector Distances | 4.7" / 120 mm |
| Peripheral Connector Distances | 19.7" / 500 mm<br />4.7" / 120 mm<br />4.7" / 120 mm<br />4.7" / 120 mm |
| SATA Connector Distances | 19.7" / 500 mm<br />4.7" / 120 mm<br />4.7" / 120 mm<br />4.7" / 120 mm |
| PCIe Connector Distances | 21.7" / 550 mm<br />4.7" / 120 mm |
| Mean Time Between Failures (MTBF) | 100, 000 Hours |
