Description

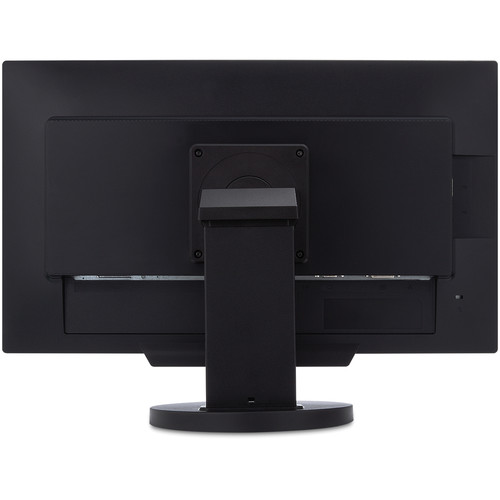

ViewSonic SD-T225: Streamlined Virtualization for Business
Optimized for major remote networking protocols, the ViewSonic SD-T225 22″ All-in-One Desktop Computer is a versatile thin client solution designed for business, education, healthcare, and government use. It provides a cleaner desktop environment with reduced cabling and clutter, enhancing productivity and efficiency.
Key Features
- 1.0 GHz TI DM8148 Cortex A8 processor for smooth performance
- 1GB DDR3 RAM and 4GB eMMC storage for efficient multitasking
- 22″ (21.5″ viewable) Full HD TFT LCD Anti-Glare Display with 1920 x 1080 resolution
- LED backlighting with up to 30,000 hours of backlight life
- Dual 2W speakers for enhanced audio experience
- Gigabit Ethernet port for fast network connectivity
- Four USB 2.0 ports for peripherals connectivity
- Compatible with Windows and Mac OS systems
- Limited 3-year warranty for parts, labor, and backlight
Benefits
The ViewSonic SD-T225 offers a range of benefits that cater to the needs of businesses and organizations. Its streamlined design and reduced cabling create a clutter-free workspace, while its robust performance and compatibility with major remote networking protocols ensure seamless virtualization. The 22″ Full HD display provides an immersive visual experience, making it ideal for various applications.
With its durable design and long-lasting backlight, the SD-T225 is a reliable choice for long-term use. The included power cord and VGA cable make setup easy, and the limited 3-year warranty provides peace of mind.
Technical Specifications
The SD-T225 is powered by a 1.0 GHz TI DM8148 Cortex A8 processor, 1GB of 1066 MHz DDR3 RAM, and 4GB of eMMC storage. The display features a 250 cd/m2 brightness, a 1,000:1 typical contrast ratio, and a 20,000,000:1 dynamic contrast ratio. It also has a tilting range of -5 to 25°, a 340° swivel, a 90° pivot, and a height adjustment of 3.9″. The system operates using ARM Linux OS and is compatible with systems running Windows and Mac OS.
Additional information
| Weight | 14.4 lbs |
|---|---|
| Dimensions | 22.4 × 15.3 × 6.7 in |
| CPU Processor | 1.0 GHz TI DM8148, Cortex A8 |
| Consumption | 26 W (typ) |
| Video In | 15-pin mini D-sub (VGA) |
| Video Out | DVI-D |
| LAN | RJ45 |
| Microphone In | 3.5 mm mini jack (red) |
| Headphone Out | 3.5 mm mini jack (green) |
| Line In | 3.5 mm mini jack (black) |
| Basic | Client, 2, Down, Up, 1, Power |
| OSD | Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall<br> (See user guide for complete OSD functionality) |
| Voltage | 90-240 VAC (universal), 50-60 Hz |
| Optimize | 20 W (typ) |
| Mac | Up to 1920 x 1080 |
| Conserve | 18 W (typ) |
| Tilt | Forward -5° / Back 25° |
| Swivel | 340° |
| Pivot | 90° |
| Height Adjustment | 3.9" / 100 mm |
| Temperature | 32 to 95°F / 0 to 35°C |
| Humidity | 15-90% (non-condensing) |
| VESA | 100 x 100 mm |
| Regulations | CB, FCC, cTUVus, CE, WEEE, RoHS Compliant, REACH Compliant |
| USB | 4 x USB 2.0 |
| PC | VGA up to 1920 x 1080 non-interlaced |
| Chipset | None |
| Brightness | 250 cd/m2 (typ.) |
| Resolution | 1920 x 1080 |
| System | 1 GB of 1066 MHz DDR3 RAM |
| Storage | 4 GB of eMMC |
| OS | Linux |
| Management | ViewSonic Device Manager Pro |
| Protocols | Citrix Receiver HDX 12.5.1, VMware PCoIP, RDP 7.1 with RemoteFX |
| Ethernet | 10/100/1000 Mbps |
| Type | Color Active Matrix TFT LCD |
| Display Area | 18.8" / 47.8 cm horizontal x 10.6" / 26.9 cm vertical; 21.5" / 54.6 cm diagonal |
| Contrast Ratio | 1, 000:1 (typ) |
| Speakers | 2 x 2 W |
| Dynamic Contrast Ratio | 20, 000, 000:1 |
| Viewing Angles | 170° horizontal, 160° vertical |
| Response Time | 5 ms |
| Backlight | LED |
| Backlight Life | 30, 000 hours (min) |
| Panel Surface | Anti-glare, hard coating (3H) |
| Analog | RGB Analog (0.7 / 1.0 Vp-p, 75 ohms) |
| Frequency | Fh: 24~82 kHz<br> Fv: 50~75 Hz |
| Sync | Separate Sync |
| Recycle / Disposal | Please dispose of in accordance with local, state, or federal laws |
