Description

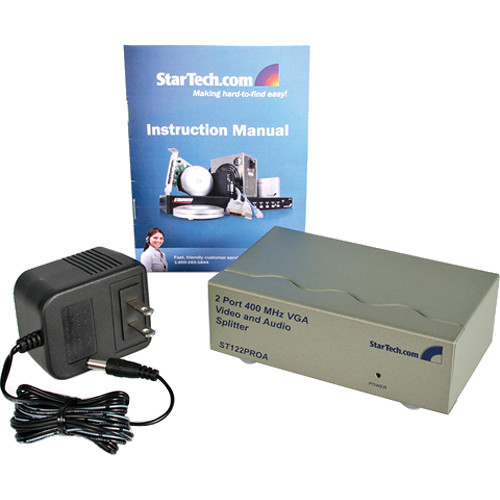

The StarTech 2-Port High Resolution VGA Video Splitter with Audio is designed for high-quality, multi-screen presentations. It splits a VGA video signal and corresponding audio, allowing you to broadcast from a computer to up to two VGA monitors and speakers simultaneously.
Ideal for classrooms, tradeshows, and in-store displays, this splitter supports displays with up to 400 MHz of video bandwidth and resolutions up to 2048 x 1536.
Featuring a built-in booster circuit, it enables monitors to be located up to 210′(64m) away from the host system, ensuring high-quality VGA video at longer distances. With easy plug-and-play installation and no software required, this hardware-based solution is both convenient and hassle-free.
Additional information
| Weight | 1.57 lbs |
|---|---|
| Dimensions | 9.7 × 6.15 × 2.7 in |
| Ports | 2 |
| Audio | Yes |

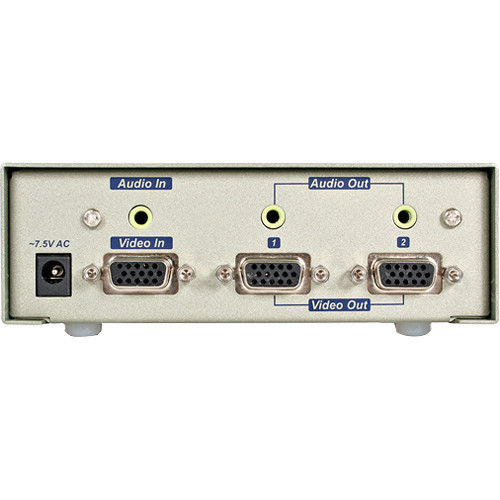

| Connector 1 | 1 x 0.1"(3.5 mm) mini-jack (3 position) female<br>1 x VGA (15-pin; high-density D-Sub) female |
| Connector 2 | 2 x 0.1"(3.5 mm) mini-jack (3 position) female <br>2 x VGA (15-pin; high-density D-Sub) female |
| Maximum Resolution Analog | 2048 x1536 at 60 Hz |
| Bandwidth | 400 MHz |
| Power Adapter | Yes (included) |
| Output Voltage | 12 VDC |
| Input Current | 0.6 A |
| Certifications | CE, FCC, RoHS |
| Dimensions (L x W x H) | 5.1 x 3 x 2.8" (129.5 x 76.2 x 71.1 mm) |
