Description
The StarTech 1000 Mb/s Gigabit Multi-Mode Fiber Media Converter lets you extend a Gigabit Ethernet network over multi-mode fiber up to 1,804′ (550m). Designed for reliable Gigabit network performance and scalability, it supports full Gigabit speeds for connecting Ethernet (1000Base-T) networks to remote segments over a 1000Base-LC fiber backbone.

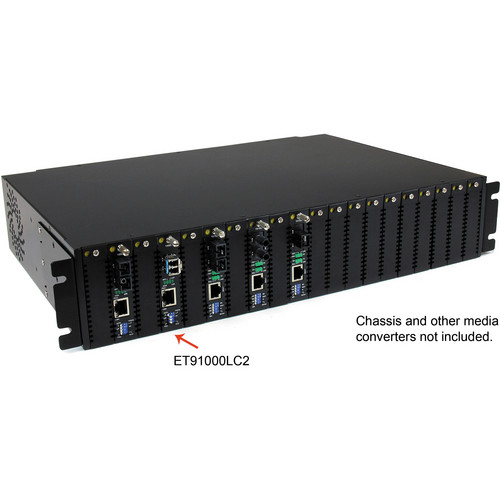

This converter features a durable all-steel chassis and simple plug-and-play installation with minimal configuration. It offers versatility with standalone operation or installation into the ETCHS2U 20-slot, 2U rackmount chassis and includes a replaceable SFP slot.
Additional information
| Weight | 1.8 lbs |
|---|---|
| Dimensions | 9.1 × 7.4 × 3 in |
| Ports | 1 x RJ45<br />1 x LC |
| Wavelength | 850 nm |
| Maximum Networking Distance | 1804' / 550 m |
| Maximum Data Rate | 2 Gb/s |
| Mode | Multi-Mode |
| Operating Mode | Half Duplex, Full Duplex |
| Plug Type | M |
| Power Consumption | 4 W |
| AC Input Power | 115 to 230 VAC, 50 / 60 Hz |
| DC Input Power | 12 VDC at 1 A |
| Center Tip Polarity | Positive |
| Material | Metal |
| Operating Temperature | 32 to 140°F / 0 to 60°C |
| Operating Humidity | 16 to 90% |
| Storage Temperature | 14 to 158°F / -10 to 70°C |
| Dimensions (L x W x H) | 6.3 x 3.7 x 0.8" / 160.0 x 94.0 x 20.3 mm |
