Description

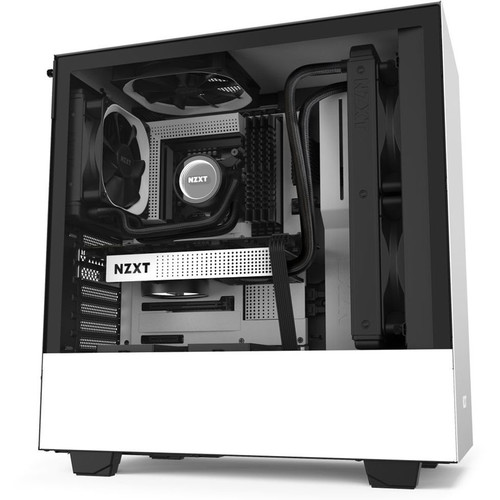

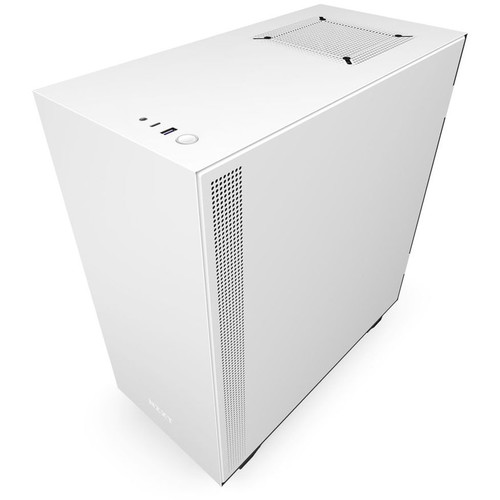

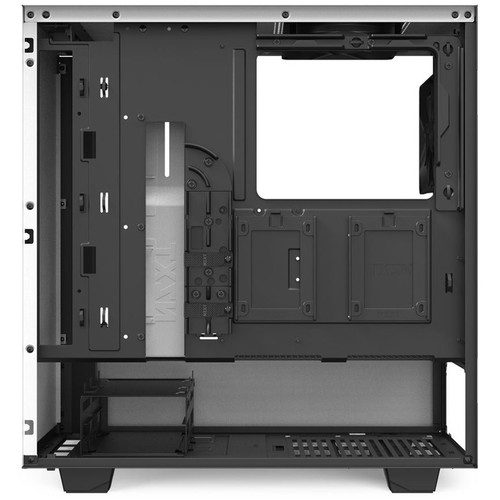

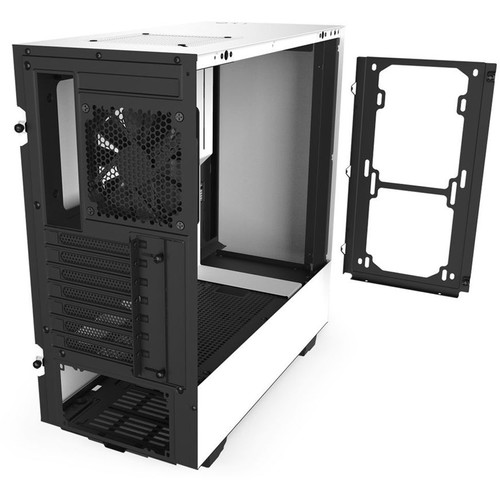

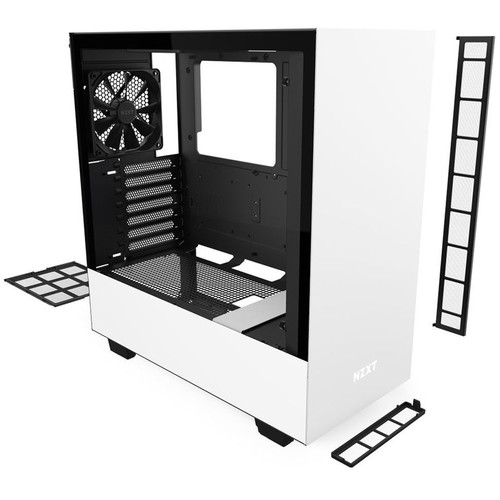

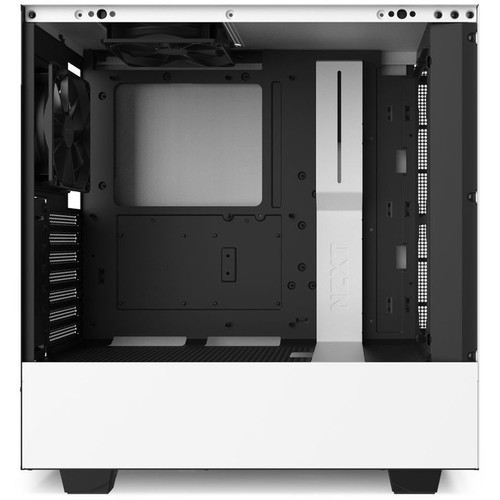

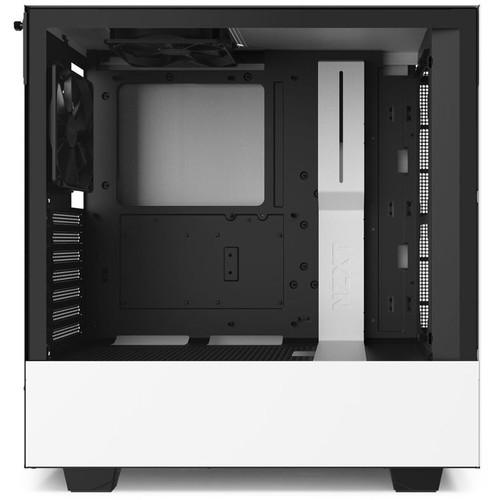

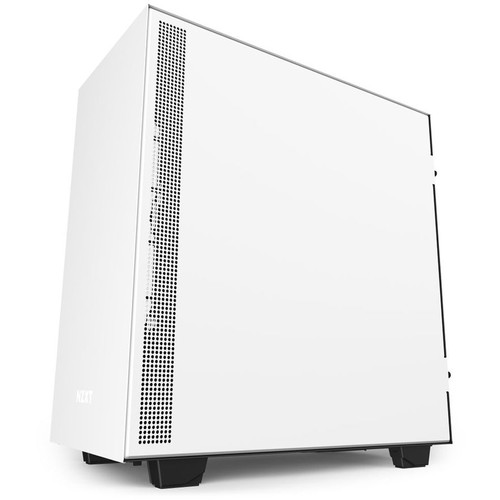

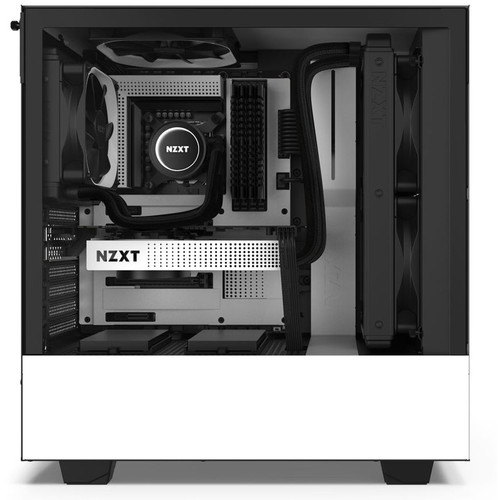

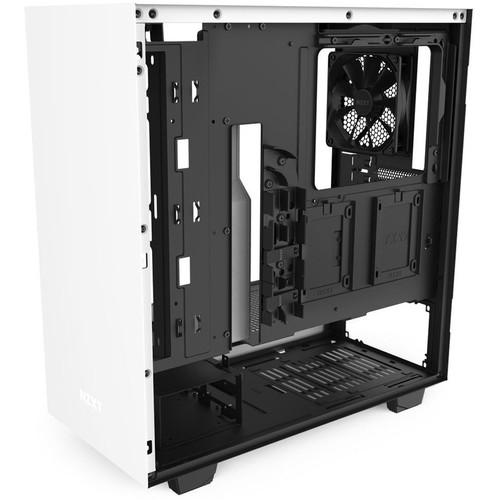

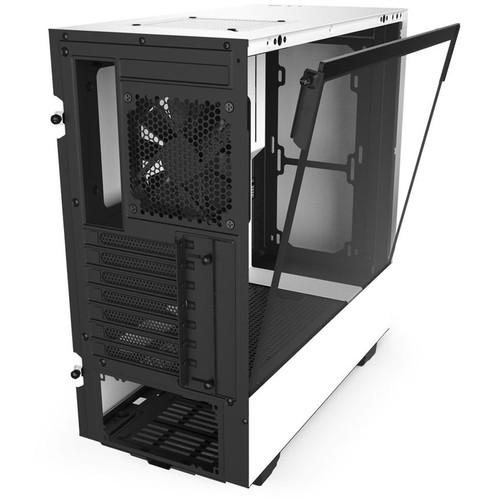

The NZXT H510 Mid-Tower Case boasts a sleek, minimalist design and robust features for a clean, easy build experience. Key features include a signature cable management bar, PSU shroud, and built-in rear cable management system. It accommodates ATX motherboards, supports up to three 2.5″ or 3.5″ drives, and is compatible with three dual-slot graphics cards. For cooling, it allows up to two 120/140 mm front fans, one 120/140 mm rear fan, and one 120/140 mm top fan, making it suitable for both air and liquid cooling setups. The tempered-glass side panel provides an ideal showcase for your hardware and custom LED lighting.
Additional information
| Weight | 18.75 lbs |
|---|---|
| Dimensions | 19.75 × 19.25 × 11 in |
| Motherboard Support | ATX, Micro-ATX, Mini-ITX |
| Maximum Radiator Size (Rear) | 120 mm |
| Dimensions (W x H x D) | 8.27 x 18.11 x 16.85" / 210 x 460 x 428 mm |
| Cable Management Space | 0.91" / 23 mm |
| Built-In Lighting | No |
| Certifications | CE, FCC, as per Manufacturer |
| Material | Steel, Tempered Glass |
| Windowed Panel | Yes |
| Display Connections | None |

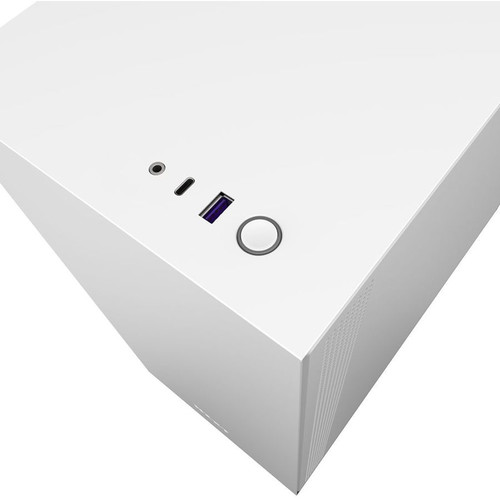

| Audio Connections | 1 x 3.5 mm Input/Output |
| Connections | 1 x USB Type-C (USB 3.1 / USB 3.2 Gen 2)<br />1 x USB Type-A (USB 3.1 / USB 3.2 Gen 1) |
| Filter Locations | Bottom, Front |
| Fan Controller Included | No |
| Noise Level | 28 dBA |
| Fan Mounting (Internal) | None |
| Maximum Radiator Size (Front) | 280 mm |
| External Drive Bays | None |
| Fans Included (Top) | 1 x 120 mm (1200 Variable rpm) |
| Fans Included (Rear) | 1 x 120 mm (1200 Variable rpm) |
| Fan Mounting (Bottom) | None |
| Fan Mounting (Top) | 1 x 120 mm<br>Or<br />1 x 140 mm<br> |
| Fan Mounting (Side) | None |
| Fan Mounting (Rear) | 1 x 120 mm<br>Or<br />1 x 140 mm<br> |
| Fan Mounting (Front) | 2 x 120 mm<br>Or<br />2 x 140 mm<br> |
| PSU Mounting Location | Bottom |
| Supported PSU Size | ATX |
| CPU Cooler Height | 6.50" / 165 mm |
| Maximum GPU Length | 15.00" / 381 mm |

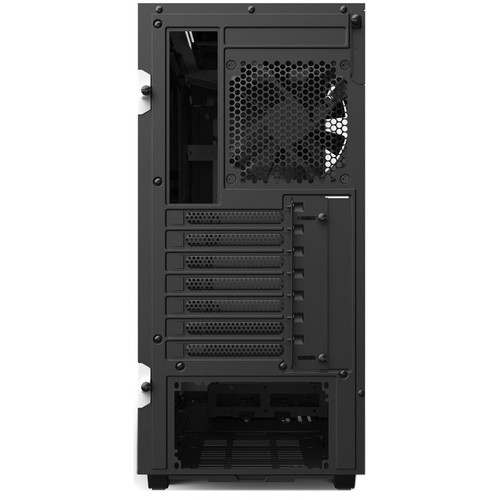

| Expansion Slots | 7 x Full Height |
| Additional Drive Mounting | 2 x 2.5" (Bottom)<br><br />2 x 2.5" (Motherboard Tray)<br> |
| Internal Drive Bays | 3 x 3.5"<br><br />3 x 2.5"<br> |
| Warranty Length | Limited 2-Year Warranty |
