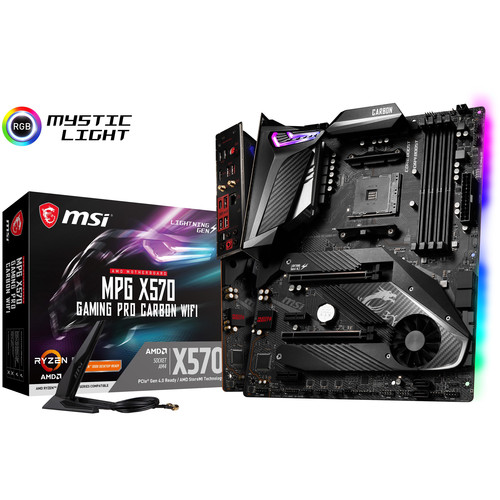

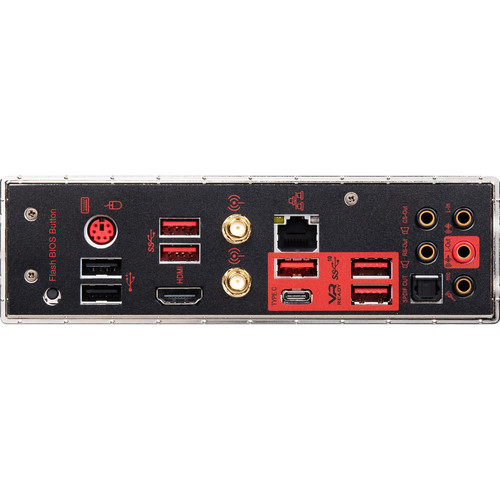

MSI MPG X570 Gaming Pro Carbon WIFI AM4 ATX Motherboard – High-Performance Gaming Motherboard with Wi-Fi 6 & RGB
$194.99

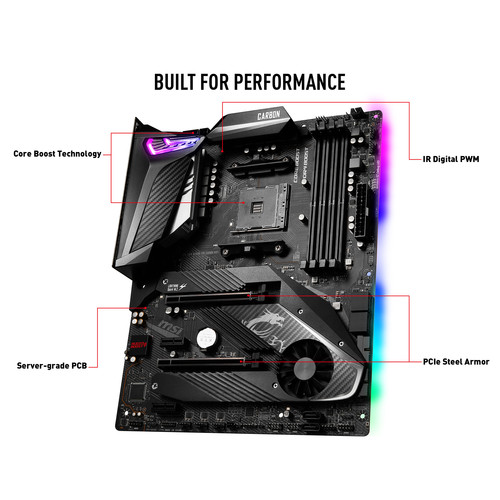

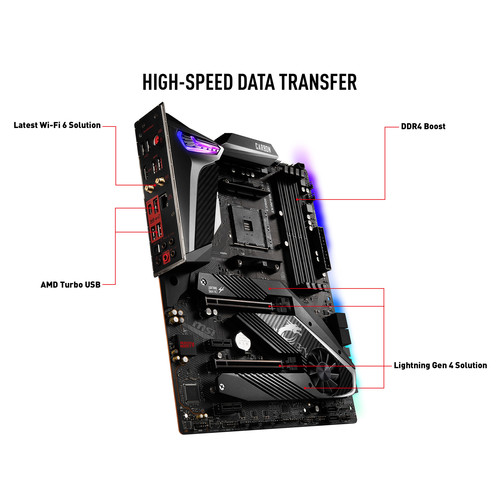

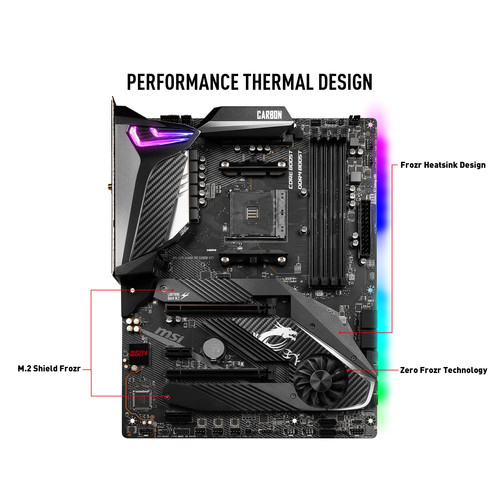

Experience high-performance gaming with MSI MPG X570 Gaming Pro Carbon WIFI. Featuring Mystic Light RGB, DDR4 Boost, Wi-Fi 6, M.2 Shield Frozr, and Lightning Gen4 for enhanced gaming capabilities
In stock
Description

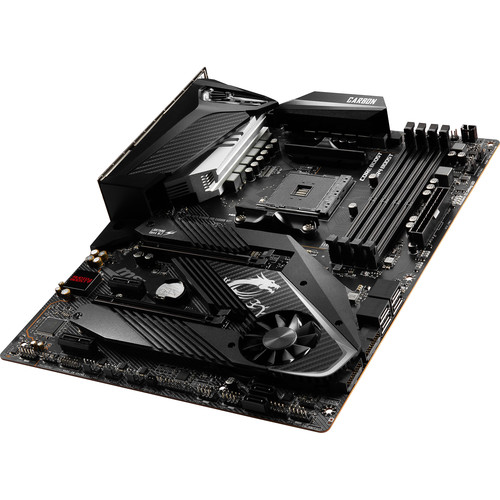

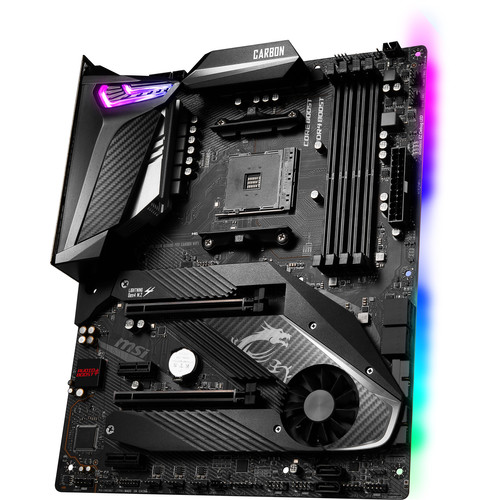

The MSI MPG X570 GAMING PRO CARBON WIFI AM4 ATX Motherboard is designed for high-performance gaming, built on the AMD X570 chipset to support second- and third-generation AMD Ryzen processors. It offers four DDR4 memory slots for up to 128GB of RAM at 4400 MHz, six SATA III ports, and two M.2 slots for extensive storage options. The motherboard includes two PCIe 4.0 x16 slots for graphics cards and features Intel I211AT Gigabit Ethernet, Intel AX200 802.11ax Wi-Fi 6, Bluetooth 5.0, and premium 7.1-channel HD audio with Realtek ALC1220 for an immersive gaming experience.
Additional information
| Weight | 4.21 lbs |
|---|---|
| Dimensions | 13.6 × 10.8 × 3.5 in |
| Chipset | AMD X570 |
| RAID Support | RAID 0, 1, 10 |
| Supported Operating Systems | Windows 10 (64-Bit) |
| Module Support | 1 E Key M.2 |
| Wi-Fi | Wi-Fi 6 (802.11ax) (MU-MIMO) |
| Bluetooth | 5.0 |
| Audio Codec | Realtek ALC1220 (7.1-Channel) |
| I/O Connection Headers | AAFP |
| Diagnostics | Clear CMOS |
| LED Header | 3 x RGB |
| Security | Chassis Intrusion, TPM Module |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin CPU<br />1 x 4-Pin CPU |
| Liquid Cooling | 1 x 4-Pin Pump |
| Air Cooling | 1 x 4-Pin CPU<br />4 x 4-Pin System |
| Multi-GPU Support | 2-Way AMD CrossFireX |
| Expansion Slots | 1 x PCIe 4.0 x16 (x16 mode)<br />1 x PCIe 4.0 x16 (x4 mode)<br />2 x PCIe 3.0 x1 |
| U.2 | None |
| CPU Socket | AM4 |
| M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 3.0 x4)<br />1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, PCIe 3.0 x4, SATA III) |
| SATA | 6 x SATA III |
| ECC Support | Non-ECC, ECC (Non-ECC Mode) Unbuffered |
| Channel Architecture | Dual Channel |
| Maximum Capacity | 128 GB |
| Memory Support | DDR4 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400 MHz |
| Memory Slots | 4 x 288-Pin |

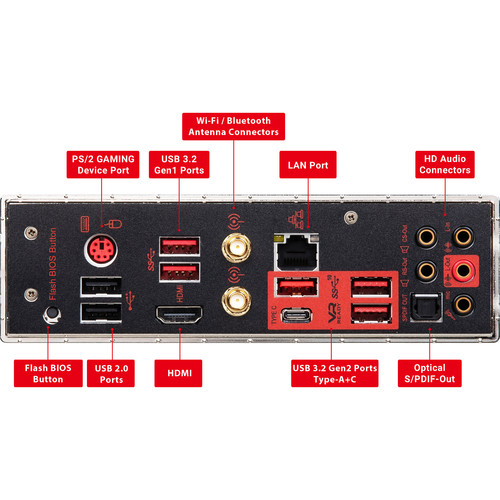

| Buttons | BIOS Flashback |
| Wi-Fi Antenna | 2 x Connector |
| PS/2 | 1 x PS/2 |
| Ethernet / Controller | 1 x Intel I211AT Gigabit |
| Display | 1 x HDMI 1.4 |
| Thunderbolt | None |
| USB | 2 x USB 2.0 Header (Supports 4 USB Type-A Port)<br />2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port) |
| Form Factor | ATX |
