Description

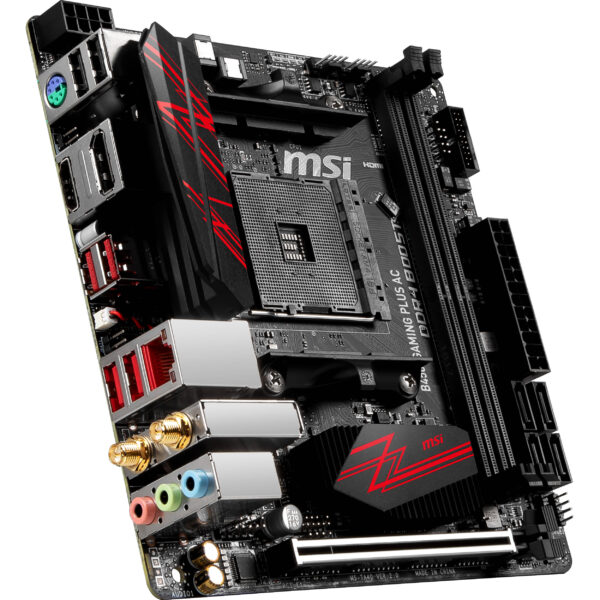

The MSI B450I Gaming Plus AC AM4 Mini-ITX Motherboard from MSI is built on the AMD B450 chipset, supporting AMD Ryzen series processors with an AM4 socket. It features two RAM slots for up to 32GB of dual-channel DDR4 memory at speeds of up to 3466 MHz when overclocked, ideal for high-performance gaming. The motherboard offers four SATA III ports and a single M.2 slot for fast storage, operating at up to 32 Gb/s with a compatible NVMe drive. With DisplayPort and HDMI ports for onboard graphics and a PCIe 3.0 x16 slot for a dedicated GPU, it caters to various graphics needs. Other features include Realtek ALC887 7.1-channel HD audio, Intel I211AT Gigabit LAN, 802.11ac Wi-Fi, and Bluetooth 4.2 for an enhanced gaming experience.
Please note that this motherboard does not currently support the AMD Ryzen 5000 series processors at this time. Support will be added through a BIOS update later in January, 2021.
Additional information
| Weight | 1.83 lbs |
|---|---|
| Dimensions | 9 × 7.7 × 2.7 in |
| Chipset | AMD B450 |
| Expansion Slots | 1 x PCIe 3.0 x16 |
| Supported Operating Systems | Windows 10 (64-Bit)<br />Windows 7 (64-Bit) |
| Module Support | 1 E Key M.2 |
| Wi-Fi | Wi-Fi 5 (802.11ac) (MU-MIMO) |
| Bluetooth | 4.2 |
| Audio Codec | Realtek ALC887 (7.1-Channel) |
| I/O Connection Headers | AAFP, USB 3.1 / USB 3.2 Gen 1 |
| Diagnostics | Clear CMOS |
| LED Header | 2 x RGB |
| Security | Chassis Intrusion |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin CPU |
| Air Cooling | 1 x 4-Pin CPU<br />1 x 4-Pin System |
| Multi-GPU Support | None |
| RAID Support | RAID 0, 1, 10 (SATA) |
| CPU Socket | AM4 |
| U.2 | None |
| M.2 | 1 x M Key 2280 (PCIe 3.0 x4, SATA III) |
| SATA | 4 x SATA III |
| ECC Support | Non-ECC, ECC (Non-ECC Mode) Unbuffered |
| Channel Architecture | Dual Channel |
| Maximum Capacity | 32 GB |
| Memory Support | DDR4 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466 MHz |
| Memory Slots | 2 x 288-Pin |
| Wi-Fi Antenna | 2 x Connector |
| PS/2 | 1 x Combo |
| Ethernet / Controller | 1 x Realtek 8111H Gigabit |
| Display | 1 x DisplayPort <br />1 x HDMI 1.4 |
| USB | 1 x USB 2.0 Header (Supports 2 USB Type-A Port)<br />1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port) |
| Form Factor | Mini-ITX |
