MSI A520M-A PRO AM4 Micro-ATX Motherboard – 64GB DDR4, PCIe 3.0, 7.1 Audio
$48.99
MSI A520M-A PRO motherboard supports AMD AM4 CPUs, 64GB DDR4 RAM, PCIe 3.0, and 7.1 Surround Sound. Ideal for efficient computing.
In stock
Description
MSI A520M-A PRO AM4 Micro-ATX Motherboard: Stability and Efficiency for Your Computer
Bring stability and efficiency to your computer with the A520M-A PRO AM4 Micro-ATX Motherboard from MSI. This motherboard is designed to work seamlessly with AMD CPUs using the AM4 socket, providing a solid foundation for your computing needs.
Key Features:
- Supports AMD AM4 socket CPUs for versatile processing options
- Dual-channel DDR4 RAM support up to 64GB and 4600 MHz (OC)
- Storage connectivity via four SATA III ports and an M.2 slot
- PCIe 3.0 x16 slot for graphics cards and PCIe 3.0 x1 slot for additional expansion cards

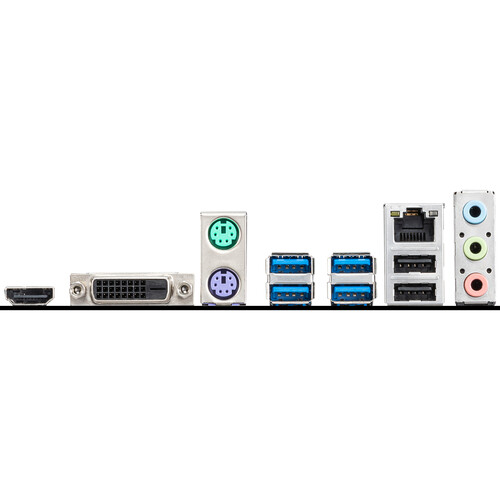

- Comprehensive rear I/O: USB 3.2 Gen 1, USB 2.0, PS/2, HDMI, DVI-D, RJ45, and 3.5mm audio jacks
- Realtek audio codecs for 7.1 Surround Sound support
- Compatible with Windows 10 operating systems
The MSI A520M-A PRO AM4 Micro-ATX Motherboard is designed to provide a reliable and efficient computing experience. With support for up to 64GB of DDR4 RAM across two dual-channel slots, you can enjoy smooth multitasking and improved performance. The motherboard also features a PCIe 3.0 x16 slot for your graphics card and a PCIe 3.0 x1 slot for other adapter cards, ensuring you have the expansion capabilities you need.
The rear I/O panel is equipped with a variety of ports to meet your connectivity needs. This includes four USB 3.2 Gen 1 ports and two USB 2.0 Type-A ports for your peripherals, as well as two PS/2 ports for legacy keyboard and mouse support. For display connections, you have the option of using either the HDMI or DVI-D ports. An RJ45 port provides Gigabit Ethernet connectivity, and three 3.5mm audio jacks are available for audio output. The motherboard utilizes Realtek audio codecs to deliver 7.1 Surround Sound, enhancing your audio experience.
Whether you’re building a new computer or upgrading an existing one, the MSI A520M-A PRO AM4 Micro-ATX Motherboard is a reliable choice that offers a balance of performance and features. Its compatibility with Windows 10 operating systems ensures you can take advantage of the latest software and security updates.
Additional information
| Weight | 1.64 lbs |
|---|---|
| Dimensions | 10.3 × 10.2 × 2.3 in |
| Chipset | AMD A520 |
| U.2 | None |
| Supported Operating Systems | Windows 10 |
| Audio Codec | Realtek ALC892/ALC897 (7.1-Channel) |
| I/O Connection Headers | AAFP, USB 3.1 / USB 3.2 Gen 1 |
| Diagnostics | Clear CMOS |
| Security | Chassis Intrusion, TPM Module |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 4-Pin ATX |
| Air Cooling | 1 x 4-Pin CPU<br />1 x 4-Pin System |
| Multi-GPU Support | None |
| Expansion Slots | 1 x PCIe 3.0 x16<br />1 x PCIe 3.0 x1 |
| RAID Support | RAID 0, 1, 10 (SATA)<br />RAID 0, 1 (M.2) |
| M.2 | 1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III) |
| CPU Socket | AM4 |
| SATA | 4 x SATA III |
| ECC Support | Non-ECC, ECC (Non-ECC Mode) Unbuffered |
| Channel Architecture | Dual Channel |
| Maximum Capacity | 64 GB |
| Memory Support | DDR4 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600 MHz |
| Memory Slots | 2 x 288-Pin |
| PS/2 | 2 x PS/2 |
| Ethernet / Controller | 1 x Realtek RTL8111H Gigabit |
| Display | 1 x HDMI 1.4<br />1 x DVI-D |
| Thunderbolt | None |
| USB | 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)<br />2 x USB 2.0 Header (Supports 4 USB Type-A Port) |
| Form Factor | Micro-ATX |
