Description

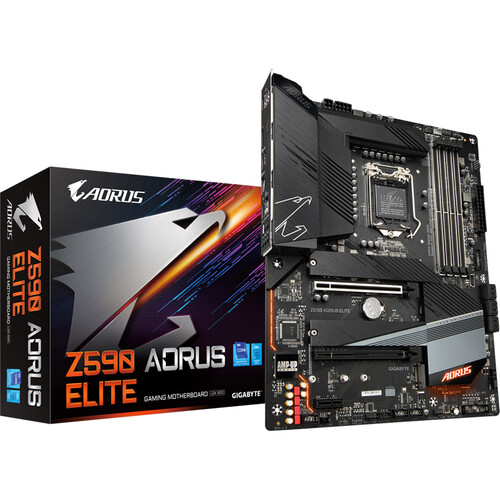

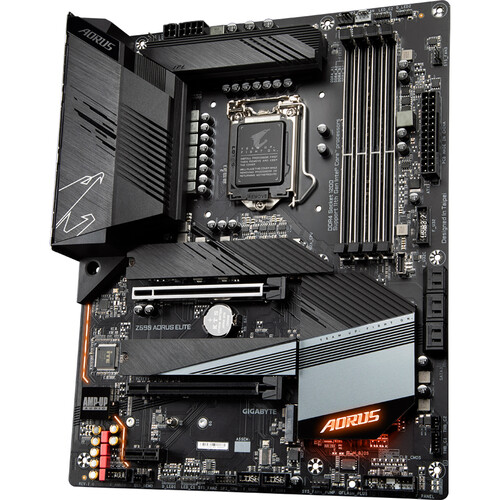

GIGABYTE Z590 AORUS ELITE LGA 1200 ATX Motherboard for Gaming Excellence
Elevate your gaming experience with the GIGABYTE Z590 AORUS ELITE LGA 1200 ATX Motherboard, designed to harness the full potential of Intel 11th Gen processors. Ideal for both new builds and upgrades, this motherboard offers a robust foundation for gaming-centric systems.
Key Features:
- Intel LGA 1200 Socket: Compatible with a wide range of Intel processors for versatile performance options.
- DDR4 Memory Support: Four dual-channel DIMM slots support up to 3200 MHz memory for seamless multitasking.
- Advanced Storage Options: Six SATA III and three M.2 interfaces for PCIe 3.0 and 4.0 NVMe SSDs, enhancing overall system performance.
- PCIe 4.0 x16 Slot: Supports the latest graphics cards for superior gaming performance.

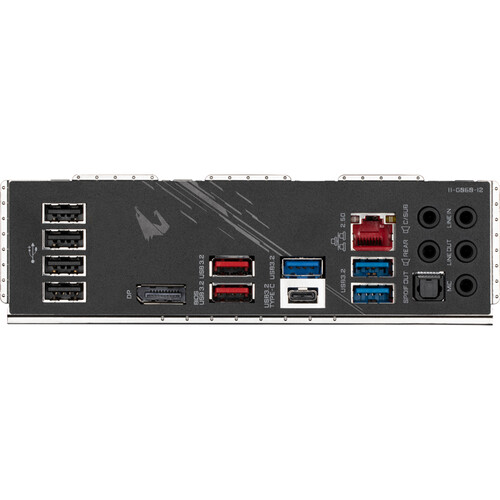

- High-Speed Connectivity: USB 3.2 Gen 2×2 and Gen 2 ports for faster data transfer and peripheral connectivity.
- Enhanced Networking: 2.5G Gigabit Ethernet for competitive online gaming with reduced latency.
- Customizable RGB Lighting: Multiple addressable RGB headers for personalized lighting effects.
This motherboard is engineered to provide a comprehensive and future-proof platform for your gaming needs. With its advanced feature set and support for the latest technologies, the GIGABYTE Z590 AORUS ELITE is the perfect choice for gamers and enthusiasts looking to build or upgrade their systems.
Experience the pinnacle of performance and customization with the GIGABYTE Z590 AORUS ELITE. Whether you’re pushing the limits of gaming or diving into content creation, this motherboard delivers the power, speed, and flexibility you need to excel.
Additional information
| Weight | 4.17 lbs |
|---|---|
| Dimensions | 13.5 × 10.7 × 3.3 in |
| Chipset | Intel Z590 |
| RAID Support | RAID 0, 1, 5, 10 |
| Supported Operating Systems | Windows 10 (64-Bit) |
| Audio Codec | Realtek ALC1220-VB (7.1-Channel) |
| I/O Connection Headers | USB 3.1 / USB 3.2 Gen 1 |
| Add-On | 2 x Thunderbolt Card Header |
| Diagnostics | Clear CMOS, Flash BIOS |
| LED Header | 4 x RGB |
| Security | TPM Module |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin ATX<br />1 x 4-Pin ATX |
| Liquid Cooling | 1 x 4-Pin Pump |
| Air Cooling | 1 x 4-Pin CPU<br />4 x 4-Pin System |
| Multi-GPU Support | Quad-GPU AMD CrossFireX<br />2-Way AMD CrossFireX |
| Expansion Slots | 1 x PCIe 4.0 x16<br />1 x PCIe 3.0 x16 (x4 mode)<br />1 x PCIe 3.0 x1 |
| Optane Memory Support | Yes |
| CPU Socket | LGA 1200 |
| U.2 | None |
| M.2 | 1 x M Key 2260, 2280, 22110 (PCIe 4.0 x4)<br />2 x M Key 2260, 2280, 22110 (PCIe 3.0 x4) |
| SATA | 6 x SATA III |
| ECC Support | Non-ECC, ECC (Non-ECC Mode) Unbuffered |
| Channel Architecture | Dual Channel |
| Maximum Capacity | 128 GB |
| Memory Support | DDR4 2133, 2400, 2666, 2933, 3000, 3200 MHz |
| Memory Slots | 4 x 288-Pin |
| Ethernet / Controller | 1 x Realtek 8125 2.5Gigabit |
| Display | 1 x DisplayPort 1.2 |
| Thunderbolt | None |
| USB | 1 x USB 3.1 / USB 3.2 Gen 2 Header (Supports 1 USB Type-C Port)<br />2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 3 USB Type-A Port)<br />2 x USB 2.0 Header (Supports 4 USB Type-A Port) |
| Form Factor | ATX |
