Corsair 650W RM650X 80 PLUS Gold Fully Modular ATX Power Supply
$99.20
Empower your PC build with Corsair’s RM650X, a high-efficiency 650W fully modular ATX power supply featuring 80 PLUS Gold certification and near-silent operation.
In stock
Description

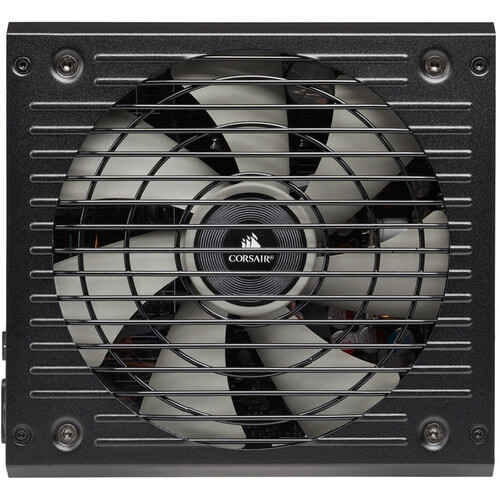

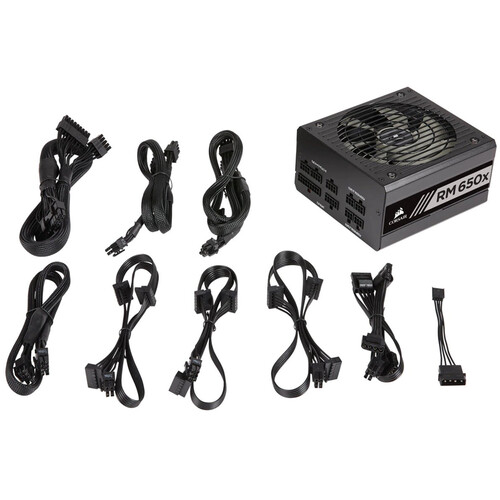

Empower your build with the RM650X 80 PLUS Gold Fully Modular ATX Power Supply from Corsair. This 650W power supply is designed for efficiency and reliability, featuring a single +12V rail and fully modular independently sleeved cables for easier wire management. With an 80 PLUS Gold certification, it boasts up to 93% efficiency. The ATX form factor offers compatibility with a wide range of cases, and the Zero RPM fan mode ensures near-noiseless operation. It’s equipped with a motherboard connector, four PCIe connectors, nine SATA connectors, and four 4-pin peripheral connectors, making it ideal for powering multiple components.
Additional information
| Weight | 6.51 lbs |
|---|---|
| Dimensions | 11.7 × 8.4 × 5.3 in |

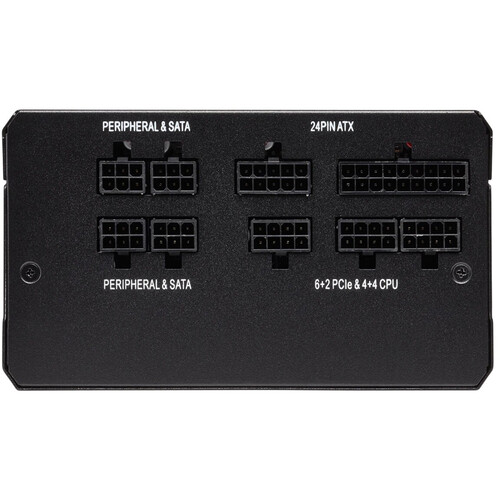

| Total Connectors | 1 x 24-Pin ATX Motherboard<br />1 x 4+4-Pin EPS CPU<br />4 x 6+2-Pin PCIe<br />9 x 6-Pin SATA / Peripheral<br />4 x 4-Pin Peripheral / Molex<br />1 x 4-Pin Floppy |
| Max Load for +5 Vsb | 3 A |
| Certifications | BSMI, CB, CCC, CE, FCC, RCM, RoHS, TUV, WEEE, cTUVus, as per Manufacturer |
| Protection | Over-Current Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection |
| Form Factor | ATX |
| Bearing Type | Rifle |
| Fan Size | 140 mm |
| Efficiency | 93% |
| Efficiency Rating | 80 PLUS Gold |
| AC Input Power | VAC50 / 60 Hz |
| Peak Power | 650 W |
| Max Power for -12 V | 9.6 W |
| Max Power for +5 Vsb | 15 W |
| Cable Design | Modular |
| Max Load for +5 V | 25 A |
| Max Load for +3.3 V | 25 A |
| Combined Power for +3.3/+5 V | 130 W |
| Max Load for -12 V | 0.8 A |
| Combined Power for +12 V | 648 W |
| Number of +12 V Rails | 1 |
| Total Wattage | 650 W |
| Peripheral Connector Distances | 17.7" / 450 mm<br />3.9" / 100 mm |
| SATA Connector Distances | 20.5" / 520 mm<br />4.5" / 115 mm |
| PCIe Connector Distances | 23.6" / 600 mm<br />5.9" / 150 mm |
| Mean Time Between Failures (MTBF) | 100, 000 Hours |
