Description

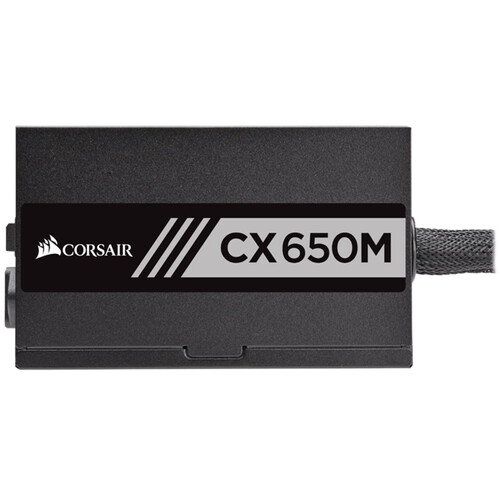

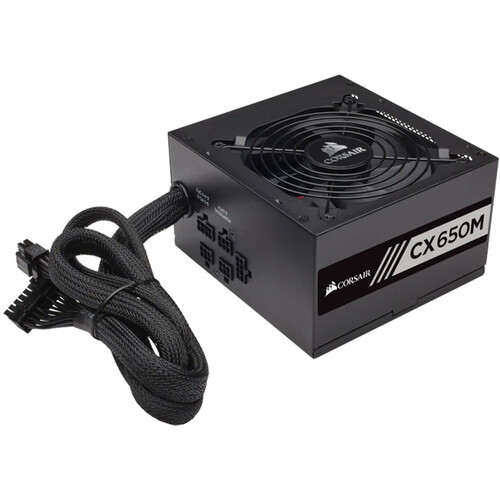

Corsair CX650M: Reliable Power for Your Build
Keep your system powered efficiently with the Corsair CX Series CX650M 650W 80 PLUS Bronze Semi-Modular ATX Power Supply. Designed for reliability and performance, this power supply unit (PSU) is ideal for a wide range of builds.
Key Features:
- 80 PLUS Bronze Certification: Ensures high efficiency and reduced energy costs.

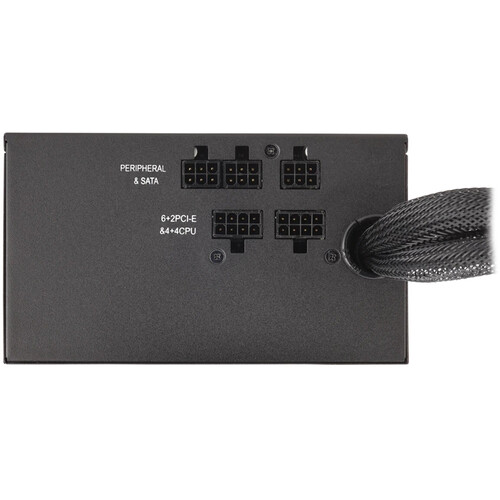

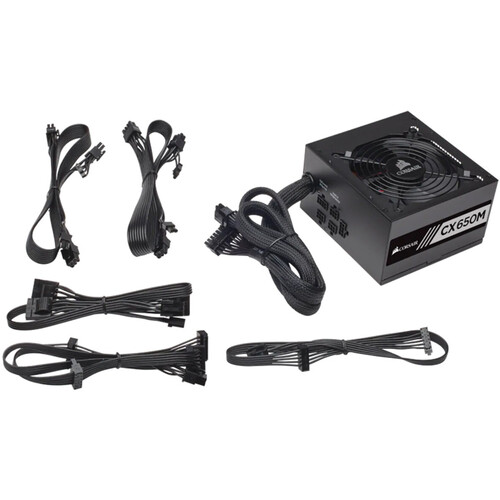

- Semi-Modular Design: Offers flexibility with a balance between fixed and modular cables, reducing clutter and improving airflow.
- Single +12V Rail: Simplifies power delivery to your components.
- Quiet Operation: Features a thermally controlled 120mm fan that maintains low noise levels under normal loads.
- Comprehensive Connectivity: Includes connectors for motherboard, CPU, two PCIe, six SATA III, three 4-pin peripheral, and one floppy.
The Corsair CX650M is built to meet the ATX12V v2.4 and EPS 2.92 standards, ensuring compatibility with a broad range of systems. Its 650W capacity is suitable for mid-range to high-end PCs, providing stable power for CPUs, GPUs, and other components.
With its durable construction and efficient operation, the CX650M power supply is a solid choice for anyone looking to build or upgrade their PC. Enjoy the peace of mind that comes with a reliable power supply from Corsair, a brand known for quality and performance in the PC hardware industry.
Additional information
| Weight | 5.2 lbs |
|---|---|
| Dimensions | 10.5 × 7.2 × 3.9 in |

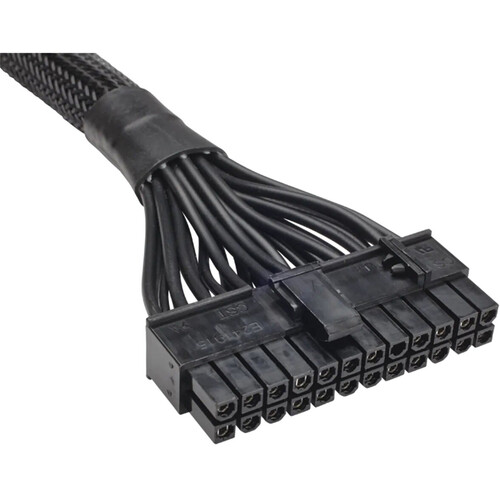

| Total Connectors | 1 x 20+4-Pin ATX Motherboard<br />1 x 4+4-Pin EPS CPU<br />2 x 6+2-Pin PCIe<br />3 x 4-Pin Peripheral / Molex<br />6 x 15-Pin SATA<br />1 x 4-Pin Floppy |
| Max Power for +5 Vsb | 15 W |
| Protection | Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection |
| Compliance | ATX 12 V v2.4 |
| Form Factor | ATX PS/2 |
| Fan Size | 120 mm |
| Efficiency Rating | 80 PLUS Bronze |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 10 to 5 A |
| Max Power for -12 V | 9.6 W |
| Max Load for +5 Vsb | 3 A |
| Max Load for +5 V | 20 A |
| Cable Design | Semi-Modular |
| Max Load for +3.3 V | 20 A |
| Combined Power for +3.3/+5 V | 120 W |
| Max Load for -12 V | 0.8 A |
| Combined Power for +12 V | 650 W |
| Number of +12 V Rails | 1 |
| Total Wattage | 650 W |
| EPS Connector Distances | 25.6" / 650 mm |
| ATX Connector Distance | 24" / 610 mm |
| Certifications | BSMI, CB, CCC, CE, FCC, RCM, RoHS, TUV, WEEE, cTUVus, as per Manufacturer |
