Description

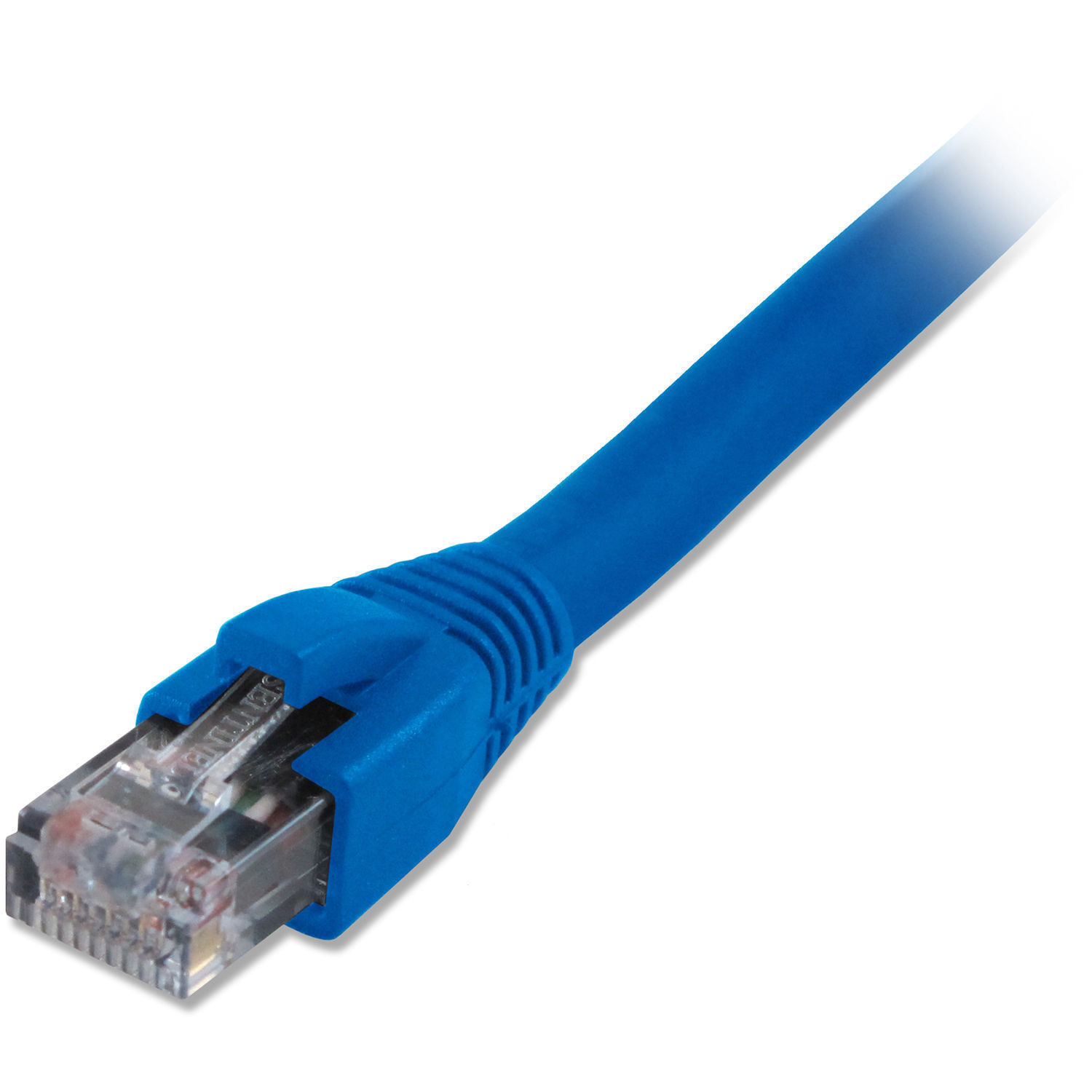

High-Performance 75ft Cat6 Shielded Plenum Cable
The Comprehensive 75ft Cat6 Snagless Solid Plenum Shielded Patch Cable (Blue) is designed to support a wide range of high-speed networking applications. This Cat6 plenum cable is engineered to deliver reliable, high-bandwidth connectivity for demanding environments.
Key Features:
- Cat6 Certification: Supports high-speed Ethernet applications including 100BASE-TX and 1000BASE-T.
- Shielded Twisted Pair: Reduces electromagnetic interference (EMI) for stable connections.
- Plenum Rated: Meets fire safety standards for use in commercial building air handling spaces.
- Snagless Design: Easy to install with strain relief boots for secure connections.
- High-Bandwidth Support: Compatible with 622 ATM and wideband applications.
This 75ft Cat6 cable is perfect for environments that require high-speed data transfer, such as offices, data centers, and other commercial settings. The blue color coding helps with cable management and organization.
By choosing this Comprehensive Cat6 shielded plenum cable, you ensure a reliable and future-proof networking solution that can handle the demands of modern high-bandwidth applications.
Additional information
| Weight | 3.02 lbs |
|---|---|
| Dimensions | 12.65 × 11.3 × 3.15 in |
| Mutual Capacitance | 14 pF/ft nominal |
| Maximum Capacitance Unbalance | 330 pF/ft |
| Velocity of Propagation | 72% |
| Conductor | Maximum Conductor D.C.R.: 28.6 ohm/1, 000 feet |
| Maximum DCR Unbalanced | 5% |
| Delay Skew | 45.0 ns/100 m (maximum) |
| Characteristic Impedance | From 0.772 – 100 MHz 100 -15%, from 101 – 250 MHz 100 -22% |
| Temperature Rating | Installation: 32 to 122°F / -0 to 50°C<br> Operation: 28.4 to 140°F / -2 to 60°C |
| Jacket Color | Blue |
| Cable Standard | ANSI/TIA/EIA 568C.2 Category 6<br> National Electric Code – Article 800 |
| Codes | NFPA 262 Plenum Flame Test, FT6<br> ETL Electrically Verified to ANSI/TIA/EIA 568C.2 Category 6<br> C (ETL )US CMP, FT6 |
| RoHS Compliant | Yes |
Related products
Computer Cables
Computer Cables

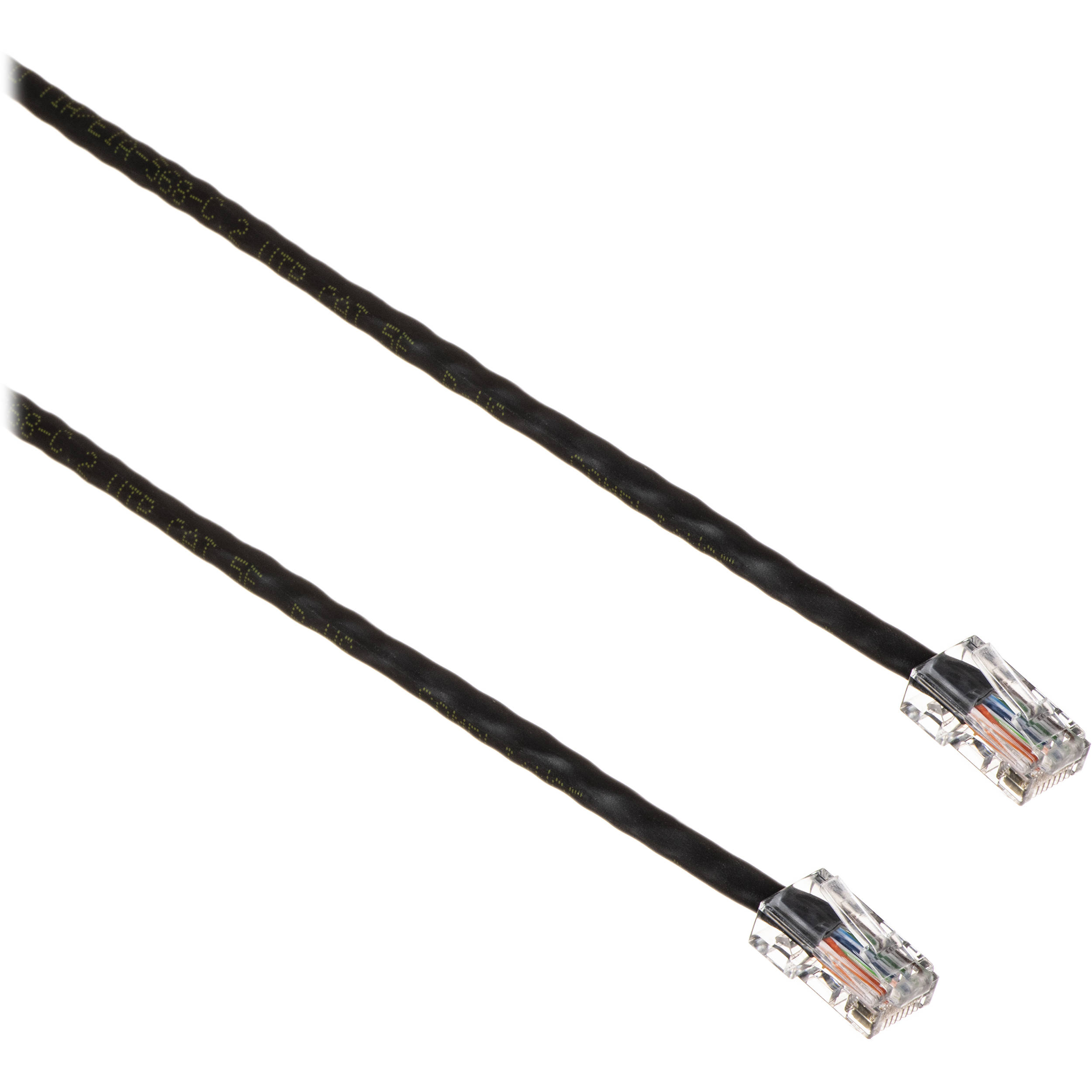

CAT5e 350MHz 1ft Black Assembly Cable – High-Speed Networking
