Description

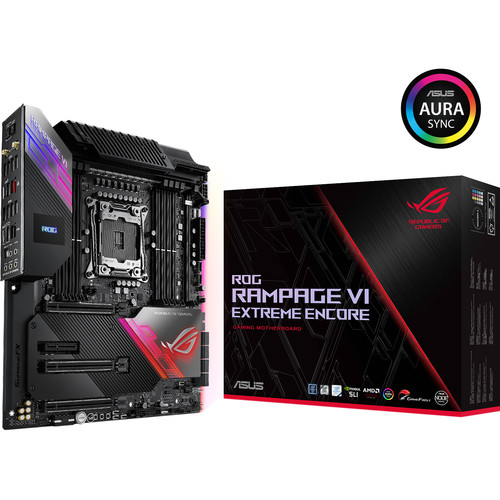

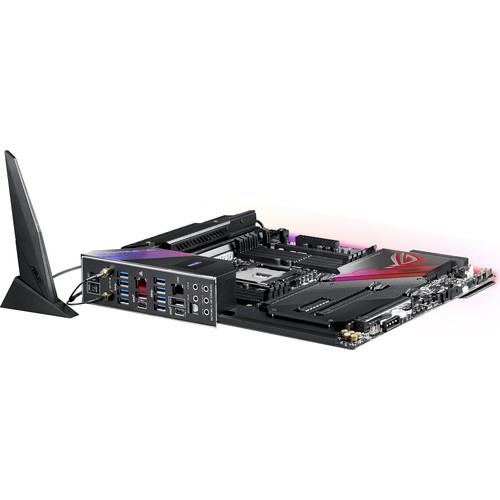

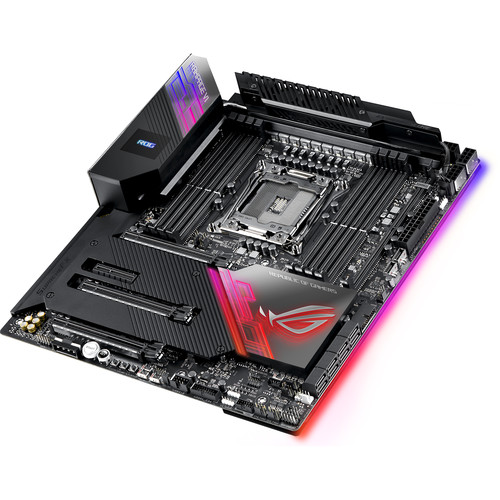

Unleash Extreme Performance with ROG Rampage VI Extreme Encore
The ASUS Republic of Gamers Rampage VI Extreme Encore LGA 2066 E-ATX Gaming Motherboard is engineered for enthusiasts seeking to maximize their system’s capabilities. Built on the robust Intel X299 chipset, this motherboard is compatible with Intel Core-X series processors via the LGA 2066 socket, providing a solid foundation for high-end computing.
Key Features:
- Supports up to 256GB quad-channel DDR4 memory with speeds up to 4266 MHz
- Three PCIe 3.0 x16 slots for 3-way NVIDIA SLI or AMD CrossFireX configurations
- Multiple storage options: SATA III ports and dual M.2 slots, expandable with the included ROG DIMM.2 module
- Advanced networking: Aquantia AQC-107 10GbE and Intel I219V GbE LAN
- Latest wireless connectivity: Wi-Fi 6 and Bluetooth 5.0
- ROG SupremeFX S1220 8-channel HD audio for immersive sound
This motherboard is designed to deliver exceptional gaming performance, featuring advanced cooling solutions and intuitive overclocking tools. The inclusion of Wi-Fi 6 and Bluetooth 5.0 ensures seamless connectivity, while the ROG SupremeFX S1220 audio technology provides an immersive gaming experience. Whether you’re a hardcore gamer or an overclocking enthusiast, the Rampage VI Extreme Encore offers the features and performance needed to take your system to the next level.
With its comprehensive set of features and future-proof design, this motherboard is perfect for those looking to build a high-performance gaming PC that can keep up with the demands of the latest games and applications.
Additional information
| Weight | 9.3 lbs |
|---|---|
| Dimensions | 14.6 × 12.2 × 4.4 in |
| Chipset | Intel X299 |
| ROM | 2 x 128 Mb |
| Multi-GPU Support | 2-Way, 3-Way AMD CrossFireX<br />2-Way, 3-Way NVIDIA SLI |
| Air Cooling | 1 x 4-Pin CPU<br />1 x 4-Pin Assistant<br />5 x 4-Pin System<br />12 x Thermal Sensor<br />1 x 2-Pin W_IN<br />1 x 2-Pin W_OUT<br />1 x 3-Pin W_FLOW |
| Liquid Cooling | 2 x 4-Pin Pump<br />1 x Water Flow-Rate Sensor |
| Power Connectors | 1 x 24-Pin Mainboard<br />2 x 8-Pin CPU<br />1 x 6-Pin ATX<br />1 x 4-Pin ATX |
| LED Header | 4 x RGB |
| Diagnostics | BIOS Selection, LN Mode, Measurement Points, ReTry, Safe Boot, Slow Mode, Start |
| I/O Connection Headers | AAFP, USB 3.1 / USB 3.2 Gen 1 |
| RAID Support | RAID 0, 1, 5, 10 (SATA) |
| Audio Codec | SupremeFX S1220 (8-Channel) |
| DAC | ESS SABRE 9018Q2C |
| Bluetooth | 5.0 |
| Wi-Fi | Wi-Fi 6 (802.11ax) (MU-MIMO) |
| Module Support | 1 E Key M.2 |
| Supported Operating Systems | Windows 10 (64-Bit) |
| Expansion Slots | 3 x PCIe 3.0 x16<br />1 x PCIe 3.0 x4 |
| Optane Memory Support | Yes |
| CPU Socket | LGA 2066 (R4) |
| Memory Slots | 8 x 288-Pin |
| USB | 2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port)<br />1 x USB 2.0 Header (Supports 2 USB Type-A Port) |
| Thunderbolt | None |
| Display | None |
| Ethernet / Controller | 1 x Aquantia AQC-107 10GbE<br />1 x Intel I219-V Gigabit |
| Wi-Fi Antenna | 2 x Connector |
| Buttons | BIOS Flashback, Clear CMOS |
| Memory Support | DDR4 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3466, 3600, 3800, 3866, 4000, 4133, 4266 MHz |
| DIMM.2 | 1 |
| Maximum Capacity | 256 GB |
| Channel Architecture | Quad Channel |
| ECC Support | Non-ECC Unbuffered |
| SATA | 8 x SATA III |
| M.2 | 1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III)<br />1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4) |
| U.2 | None |
| Form Factor | E-ATX |
