ASUS PRIME B550 Plus AM4 ATX Motherboard – High Performance with PCIe 4.0 & USB 3.2 Gen 2
$92.37
High-performance ASUS Prime B550 Plus AM4 ATX Motherboard with PCIe 4.0, USB 3.2 Gen 2, and Aura Sync RGB for AMD Ryzen processors, supporting up to 128GB DDR4 RAM.
In stock
Description

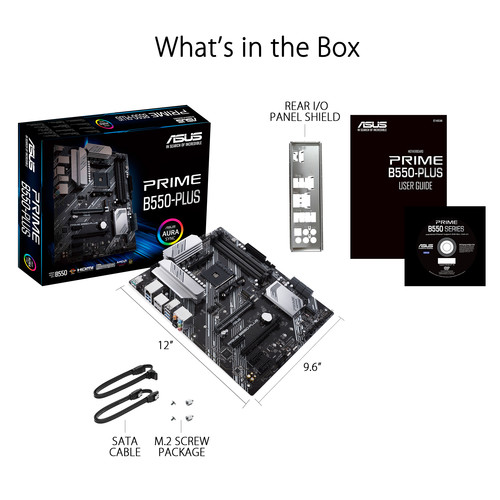

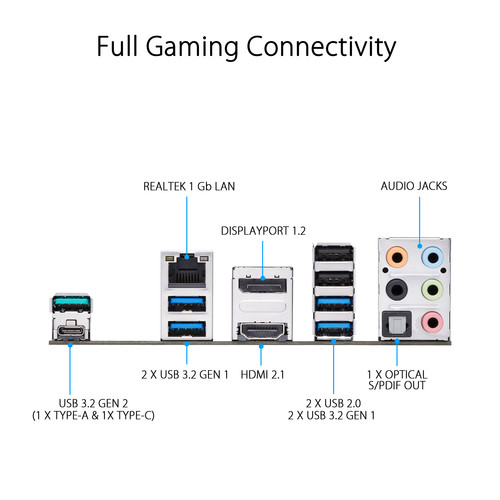

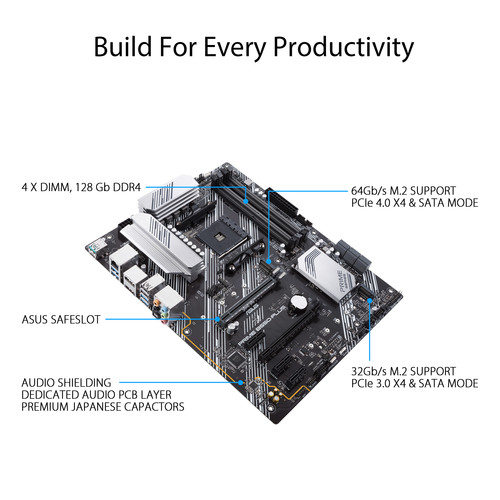

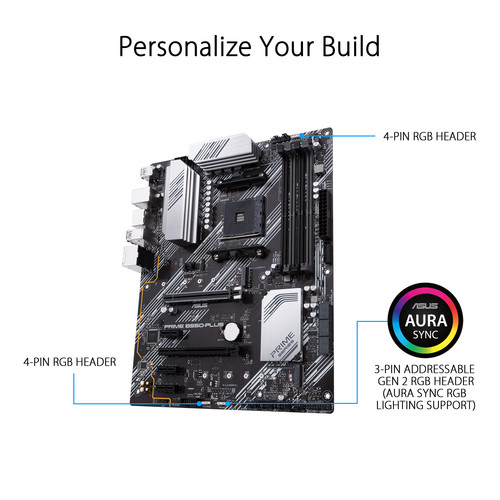

Elevate your AMD Ryzen system with the ASUS Prime B550 Plus AM4 ATX Motherboard. Featuring the B550 chipset and AM4 socket, this motherboard supports up to 128GB of DDR4 RAM at frequencies up to 3200 MHz, or 4800 MHz when overclocked. It offers extensive storage options, including six SATA III drives and two M.2 drives with PCIe 4.0 x4 and PCIe 3.0 x4 performance. The Prime B550 Plus also supports RAID configurations for resilient storage and CrossFireX for multi-GPU setups, along with comprehensive USB and audio solutions. The inclusion of ASUS Aura Sync enables synchronization with other RGB components. Comprehensive connectivity is provided through multiple USB ports, HDMI, DisplayPort, and high-quality audio jacks, making it a robust foundation for a high-performance computer. Comes with SATA cables, a support DVD, and M.2 SSD mounting hardware.
Additional information
| Weight | 2.95 lbs |
|---|---|
| Dimensions | 13 × 10.5 × 2.2 in |
| Chipset | AMD B550 |
| RAID Support | RAID 0, 1, 10 |
| Supported Operating Systems | Windows 10 (64-Bit) |
| Audio Codec | Realtek ALC887 (7.1-Channel) |
| I/O Connection Headers | AAFP, USB 3.1 / USB 3.2 Gen 1, USB 3.1 / USB 3.2 Gen 2 |
| Add-On | 1 x Thunderbolt Card Header |
| LED Header | 2 x RGB |
| Security | TPM Module |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin ATX |
| Liquid Cooling | 1 x 4-Pin Pump |
| Air Cooling | 2 x 4-Pin CPU<br />3 x 4-Pin System<br />1 x Thermal Sensor |
| Multi-GPU Support | 2-Way AMD CrossFireX |
| Expansion Slots | 1 x PCIe 4.0 x16<br />1 x PCIe 3.0 x16 (x4 mode)<br />3 x PCIe 3.0 x1 |
| U.2 | None |
| CPU Socket | AM4 |
| M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, SATA (Unspecified))<br />1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4, SATA (Unspecified)) |
| SATA | 6 x SATA III |
| ECC Support | Non-ECC, ECC Unbuffered |
| Channel Architecture | Dual Channel |
| Maximum Capacity | 128 GB |
| Memory Support | DDR4 2133, 2400, 2666, 2800, 3000, 3200, 3333, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4600, 4800 MHz |
| Memory Slots | 4 x 288-Pin |
| Ethernet / Controller | 1 x Gigabit |
| Display | 1 x DisplayPort 1.2<br />1 x HDMI 2.1 |
| Thunderbolt | None |
| USB | 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)<br />2 x USB 2.0 Header (Supports 4 USB Type-A Port) |
| Form Factor | ATX |
